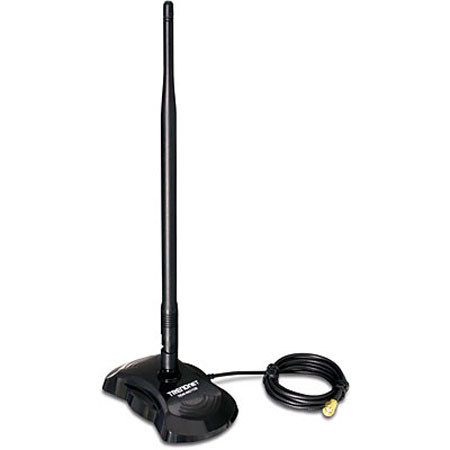

TRENDnet 7dBi Indoor Omni Directional Antenna

SKU: TNEWAIO70B MFR: TEW-AIO70B
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$20.92
Qty:
Add to Wishlist In Stock

About this item

The TRENDnet 7dBi Indoor Omni Directional Antenna significantly improves wireless network range and signal strength in all directions. Avoid the expense of adding additional wireless access points or wireless repeaters when you can quickly install this TEW-AIO70B. Mount the antenna on the included mounting base or connect it directly to a wireless device with a common SMA connector. A 1.5m (4.9 feet) extension cable provides mounting flexibility.

The magnetic mounting base can be mounted on most ferrous metal surfaces. Hardware for installation on common building construction types is included as well. The adjustable antenna tilts 180deg. and rotates 360deg. providing optimal signal conveyance for every environment and mounting condition.

What's Included With This Item

  • TRENDnet 7dBi Indoor Omni Directional Antenna
  • Multi-Language Quick Installation Guide
  • TRENDnet 3 Year Limited Warranty

Key Features

  • Improve wireless coverage, signal transmission and reception
  • Includes a mounting base kit
  • Compatible with 2.4GHz IEEE 802.11b/g wireless devices
  • Works with wireless devices utilizing a Reverse SMA male connector
  • Serves as an indoor Omni Directional Antenna
  • No configuration or installation software required
  • Plug in and Play installation

Technical Specs

Frequency Range 2.4 - 2.5GHz
Gain 7dBi
Return Loss -10dB
VSWR 1.92 (max)
Polarization Linear Vertical
HPBW/ Horizontal 360deg.
HPBW/ Vertical 7deg.
Power Handling 1 Watt
Impedance 50Ohm nominal
Connector Reverse SMA
Cable Length 1.5m / 4.9'
Temperature -20deg.C - 65deg.C
(-4deg.F - 149deg.F)
Antenna/Base Material ABS / PBT
Dimensions (including base) 70x110x300mm / 2.75x4.33x11.8"
Weight (with base) 230g / 8.11oz
