TRENDnet

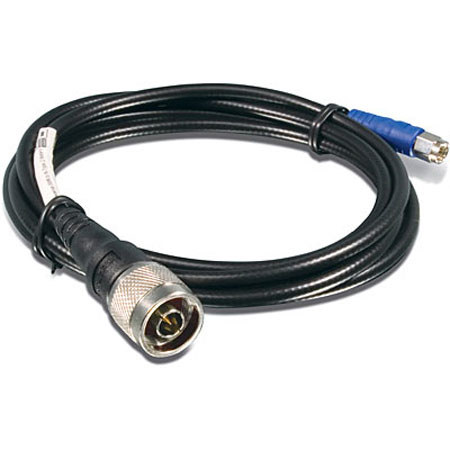

TRENDnet LMR200 2m Reverse SMA to N-Type Cable

SKU: TNEWL202 MFR: TEW-L202
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$13.60
Qty:

Add to Wishlist In Stock

About the TRENDnet LMR200

The TRENDnet LMR200 Reverse SMA to N-Type Cable extends your wireless Antenna up to 2 meters to provide optimal placement for your antenna outdoors. Connect business networks from building to building wirelessly or provide wireless Internet access for hot spot applications! This cable makes wireless communication possible by providing low loss communication between your access point and antenna.

TRENDnet LMR200 Includes

  • TRENDnet LMR200 2m Reverse SMA to N-Type Cable
  • Weatherproof Tape
  • User's Guide
  • TRENDnet 2 Years Limited Warranty

TRENDnet LMR200 Features

  • Wi-Fi Compliant with 2.4GHz 802.11 b/g & 5GHz 802.11a Devices for extending wireless networks
  • Reverse SMA Female to N-Type Male Connector
  • Optimal placement of your existing Wi-Fi Device permits you to maximize its wireless performance
  • Flexible outer conductor allows the tightest bend radius available for any cable of similar size and performance
  • Provides flexible Low-loss communication for wireless antenna
  • 50dB RF Shielding is 10 dB greater than typical single shielded coax (40 dB)
  • Multi-ply bonded outer foil conductor is rated conservatively at > 90 dB
  • Weatherproof cable design for outdoors exposure with best materials for UV resistance
  • Polyethylene jacketed cable designed for outdoor use
  • Easy and quick deployment into a WLAN environment

TRENDnet LMR200 Specifications

Cut-off Frequency 39 GHz
Velocity of Propagation 83%
Dielectric Constant 1.45
Time Delay 1.22 nS/ft (4.02 nS/m)
Impedance 50 ohms
Capacitance 24.5 pF/ft (80.3 pF/m)
Inductance 0.061uH/ft (0.20 uH/m)
Shielding Effectiveness > 90 dB
DC Resistance Inner Conductor: 5.36ohms/1000ft (17.6 ohms/km)
Outer Conductor: 4.9 ohms/1000ft (16.1 ohms/km)
Voltage Withstand 1000 Volts DC
Jacket Spark 3000 Volts RMS
Peak Power 2.5 kW
Temperature Operating: -40deg. C - 85deg.C (-40deg.F-185deg.F)
Storage: -70deg. C - 85deg.C (-94deg.F-185deg.F)
Inner Conductor (Solid BC) 0.044" / 0.11cm
Dielectric (Foam PE) 0.116" / 0.29cm
Outer Conductor (Aluminum Tape) 0.121" / 0.30cm
Over Braid (Tinned Copper ) 0.144" / 0.36cm
Jacket (PE) 0.195" / 0.49cm
Bend Radius: Installation 0.5" / 1.27cm
Bend Radius: Repeated 2" / 5.08cm
Bending Moment 0.2 ft-lb (0.27 N-m)
Tensile Strength 40lbs / 18.14kg
Flat Plate Crush 15 lb/in. (0.27 kg/mm)
Weight 115g / 4.05oz
