TRENDnet

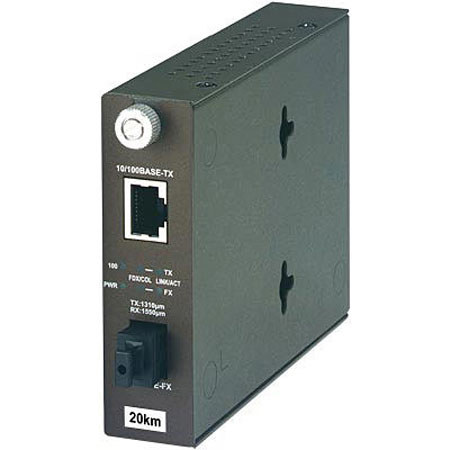

TRENDnet 100Base-TX to 100Base-FX Dual Wavelength Single Mode SC Fiber Converter

SKU: TNFC10S20D3 MFR: TFC-110S20D3
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The TRENDnet 100Base-TX to 100Base-FX Dual Wavelength Single Mode SC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This Dual Wavelength Single Mode SC Simplex type converter spans distances up to 20km (12.4 miles) and must be used with model TFC-110S20D5. Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC Simplex Type) port.

What's Included With This Item

  • TRENDnet 100Base-TX to 100Base-FX Dual Wavelength Single Mode SC Fiber Converter
  • Multi-Language Quick Installation Guide
  • Power Adapter (5 V DC, 1 A)
  • TRENDnet 3 Year Limited Warranty

Key Features

  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
  • 1 x 10/100Base-TX auto-negotiation RJ-45 port
  • Auto MDIX for 10/100Base-TX port and one 100Mbps bi-directional single-mode fiber port with simplex SC-type connector
  • Status LED indicators for Power, Link/Activity, Full-Duplex, Link Fail and Speed
  • Dip-switch for full and half duplex selection on fiber port
  • Wall mountable
  • Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Technical Specs

Media SMF
Wavelength TX: 1310nm
RX: 1550nm
Pout (dBm) -14 to 8
Sensitivity -31 to 0
Power 17Distance
Distance 20km
Standard IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size Standard Ethernet up to 1522byte
Network Media 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m
100Base-FX: Single-mode fiber optic cable 9/125 um or 10/125 um, up to 20km
Protocol CSMA/CD
Ports 1 x 10/100Base-TX
1 x 100Base-FX single-mode bi-directional fiber (simplex SC-type)
Dip Switch FX: duplex mode (half/full)
Transfer Rate 100Mbps (half-duplex)
200Mbps (full-duplex)
Diagnostic LED Per Unit: Power
Per Port: link/activity, full-duplex/collision, link fail, speed (on fiber port)
Power Adapter 7.5V DC, 1A external power adapter
Power Consumption 2 Watts (max)
Operating Temperature 0deg. - 40deg. C (32deg. - 104deg. F)
Storage Temperature -25deg. - 70deg. C (-13deg. - 158deg. F)
Humidity Max. 90% (non-condensing)
Dimensions 120x88x25mm (4.72x3.46x0.98")
Weight 354g (12.48oz)
