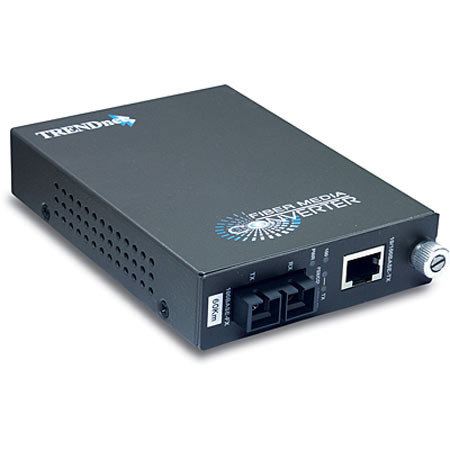

TRENDnet TFC-110S60 100Base-TX to 100Base-FX Single Mode SC Fiber Converter, 60KM /37.2Miles

See all TRENDnet items
SKU: TNFC10S60 MFR: TFC-110S60

About TRENDnet TFC-110S60

The TRENDnet TFC-110S60 100Base-TX to 100Base-FX Single Mode SC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 60km (37.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

TRENDnet TFC-110S60 Features

  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
  • 1 x 10/100Base-TX auto-negotiation RJ-45 port
  • Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
  • Auto MDIX for 10/100Base-TX port
  • 1 x 100Mbps fiber port with single-mode SC-type connector
  • Status LED indicators for Power, Link/Activity, Full-Duplex and Speed
  • Provides dip-switch for full and half duplex selection on fiber port
  • Wall mountable
  • Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

TRENDnet TFC-110S60 Specifications

Media
SMF
Wavelength
1310nm
Pout (dBm)
-5 to 0
Sensitivity
-35 to 0
Power
30
Distance
60km
Standard
IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size
Standard Ethernet up to 1518bytes
Network Media
100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m
100Base-FX: Single-mode fiber optic cable 9/125 um or 10/125 um, up to 60km
Protocol
CSMA/CD
Ports
1 x 10/100Base-TX
1 x 100Base-FX (SC-type)
Dip Switch
FX: duplex mode (half/full)
Transfer Rate
100Mbps (half-duplex)
200Mbps (full-duplex)
Diagnostic LED
Per Unit: power
Per Port: link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter
7.5V DC, 1A external power adapter
Power Consumption
1.8 Watts (max)
Operating Temperature
0deg. - 40deg. C (32deg. - 104deg. F)
Storage Temperature
-25deg. - 70deg. C (-13deg. - 158deg. F)
Humidity
Max. 90% (non-condensing)
Dimensions
120x88x25mm (4.72x3.46x0.98")
Weight
354g (12.48oz)
