TRENDnet TFC-15MS100 100Base-FX Multi-Mode to Single Mode SC Fiber Converter

SKU: TNFC15MS100 MFR: TFC-15MS100

Our Price

$124.49
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • Compliant with IEEE 100Base-FX standards
  • 1 x 100Mbps fiber port with multi-mode SC-type connector
  • 1 x 100Mbps fiber port with single-mode SC-type connector
  • Status LED indicators for Power, Link/Activity and Full-Duplex
  • Wall mountable
  • Fiber Media Converter

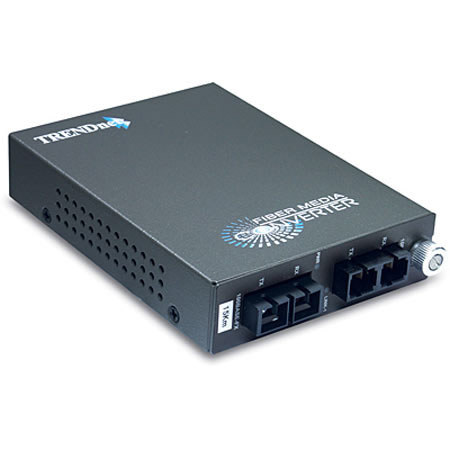

TRENDnet TFC-15MS100: Picture 1 regular $124.49

About TRENDnet TFC-15MS100

The TRENDnet TFC-15MS100 100Base-FX Multi-Mode to Single Mode SC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This Multi Mode to Single Mode SC-Type converter spans distances up to 15km (9.3 miles). Ports include 2 x 100Base-FX (SC-Type) ports. Network 100Base-FX Multi-Mode to 100Base-FX Single Mode media.

TRENDnet TFC-15MS100 Features

  • Compliant with IEEE 100Base-FX standards
  • 1 x 100Mbps fiber port with multi-mode SC-type connector
  • 1 x 100Mbps fiber port with single-mode SC-type connector
  • Status LED indicators for Power, Link/Activity and Full-Duplex
  • Wall mountable
  • Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

TRENDnet TFC-15MS100 Specifications

Media
MMF
SMF
Wavelength
1300nm
1310nm
Pout (dBm)
-23.5 - -14
-20 - 0
Sensitivity
-31 - 0
-32 - 0
Power
7.5
12
Distance
2km
15km
Standard
IEEE802.3u 100Base-FX
Supported Frame Size
Standard Ethernet up to 1522byte
Network Media
100Base-FX: Multi-mode fiber optic cable 50/125 um or 62.5/125 um, up to 2km
100Base-FX: Single-mode fiber optic cable 9/125 um or 10/125 um, up to 15km
Protocol
CSMA/CD
Ports
100Mbps (half-duplex)
200Mbps (full-duplex)
Transfer Rate
100Base-TX: 200Mbps (Full Duplex)
Diagnostic LED
Per unit: Power
Per Port: link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter
7.5V DC, 1A external power adapter
Power Consumption
1.8 Watts (max)
Operating Temperature
0deg. - 40deg. C (32deg. - 104deg. F)
Storage Temperature
-25deg. - 70deg. C (-13deg. - 158deg. F)
Humidity
Max 90% (non-condensing)
Dimensions
120x88x25mm (4.72x3.46x0.98")
Weight
354g (12.48oz)
Mfr #
TFC-15MS100
SKU
TNFC15MS100
