TRENDnet 56K External Data/Fax/TAM Modem

Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

About the TRENDnet 56K Fax / Phone

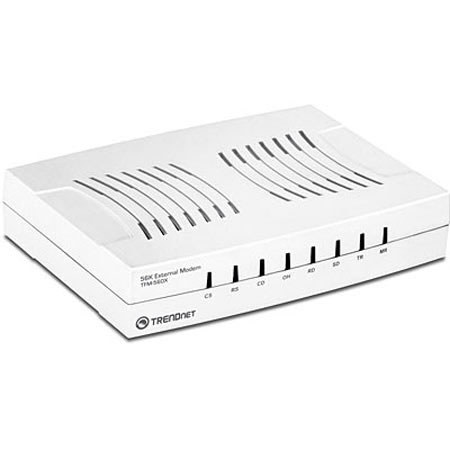

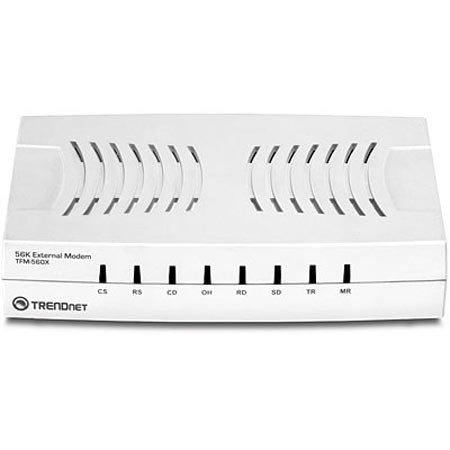

The TRENDnet TFM-560X 56K External Data/Fax/TAM Modem provides users with the highest possible data communication rates, reliable error-free transmissions and widespread interoperability with other users. The TFM-560X also supports Group 3 fax send-and-receive functions. Free communication software and serial cable are included with the TFM-560X for quick and easy startup. TRENDnet's TFM-560X is also compatible with virtually all communication software and capable of utilizing the AT command set.

TRENDnet 56K Fax / Phone Includes

  • TRENDnet 56K External Data/Fax/TAM Modem
  • Multi-Language Quick Installation Guide
  • CD-ROM (Driver & User's Guide)
  • Power Adapter (9VAC, 1A)
  • 1 x RJ-11 Telephone Cable
  • 1 x RS-232 Serial Cable
  • TRENDnet 3 Year Limited Warranty

TRENDnet 56K Fax / Phone Features

  • ITU-T V.92/V.90 auto detection and auto rate adaptive
  • Supports V.44 and V.92 Quick Connect, PCM Upstream and Modem-on-Hold feature
  • High Speed 56kbps data transfer rate with maximum degree of interoperability
  • Robust hardware component supports software-only upgrades
  • Supports high speed analog data and high speed fax
  • Fax transfer rate up to 14.4 kbps with ITU-T T.31 fax standard
  • Built-in RS-232 serial interface for connection
  • Compatible with Windows 7/Vista/XP/2000/ME/98SE operating systems
  • Supports TAM (Telephone Answering Machine) for remote message retrieval
  • Free communication software

TRENDnet 56K Fax / Phone Specifications

Hardware Standards Compatible with ITU and Bell Standards: V.92 56 Kbps ITU standard
V.90 56 Kbps ITU standard
V.34 33.6 Kbps ITU standard
V.32bis, V.32, V.22bis, V.23, V.21, Bell 212A, Bell 103
Error Correction V.42, LAP-M & MNP 2-4
Data Compression V.44, V.42bis & MNP5
Fax ITU-T T.31 (send and receive)
V.17, V.29, V.27ter and V.21 ch2
EIA/TIA-578 fax Class1 command
PC Telephony International telephony support
ITU-T V.250 AT command set
Hardware Supported Features Data/fax call discrimination
Call progress
Supported OS Windows 7(32/64-bit) / Vista (32/64-bit) / XP(32/64-bit) / 2000 /ME/98SE
Mac OS and Linux
Interface PC: RS-232
PSTN: RJ11 (telephone line)
Power 9V AC, 1A external power adapter
Power Consumption 995mW (max)
Temperature Operating : 0deg. C - 50deg. C (32deg. F - 122deg. F)
Storage : -20deg. C - 60deg. C (-4deg. F - 140deg. F)
Humidity Max 90% (non-condensing)
Dimension (LxWxH) 153.00x109.00x29.00mm (6.02x4.30x1.14")
Weight 200g (7.05oz)
