TRENDnet

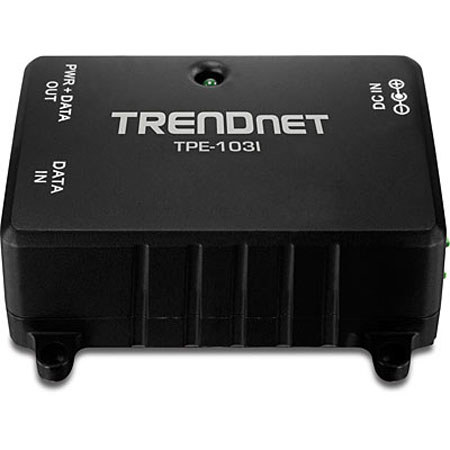

TRENDnet Power Over Ethernet (PoE) Injector

SKU: TNPE103I MFR: TPE-103I
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$22.99
Qty:
Add to Wishlist In Stock

About this item

The TRENDnet Power Over Ethernet (PoE) Injector combines electrical power with a Fast Ethernet network connection to produce a Power over Ethernet (PoE) signal. Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft.) to network PoE devices.

No need to buy a PoE switch-use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations. This compact device safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network.

What's Included With This Item

  • TRENDnet Power Over Ethernet (PoE) Injector
  • Quick Installation Guide
  • Power Adapter (48V DC, 0.4A)
  • TRENDnet 3 Year Limited Warranty

Key Features

  • IEEE 802.3af PoE compliant
  • 10/100Mbps Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328ft)
  • 1 x 10/100Mbps Auto-MDIX Data In port
  • 1 x 10/100Mbps PoE Auto-MDIX Data Out port
  • Power port
  • Power LED indicator
  • Supplies power up to 15.4 Watts
  • Easily install a PoE device where a power outlet is not available
  • Reduce installation and network equipment costs
  • Safeguards network devices with short circuit protection
  • Plug and Play in remote location
  • Light weight and compact size
  • Wall mounting points

Technical Specs

Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power over Ethernet
Network Media 10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
100Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
Ports 1 x 10/100Mbps DATA-IN (Data only)
1 x 10/100Mbps PWR+DATA OUT (Power + Data)
Data Lines Pair 1: Pin 1, 2
Pair 2: Pin 3, 6
Power Input: 100-240V, 50-60Hz, 0.4A max.
Output: 48V DC, 0.4A 18W max.
Power Consumption Max. 15.4 Watts
Temperature Operation: 0deg.C-50deg.C (32deg.F- 122deg.F)
Storage: -20deg.C-60deg.C (-4deg.F-140 deg.F)
Humidity Max. 90% (non-condensing)
Dimensions (WxDxH) 70x45x25mm / 2.75x1.77x0.98"
Weight 45g (1.58oz)
