TRENDnet

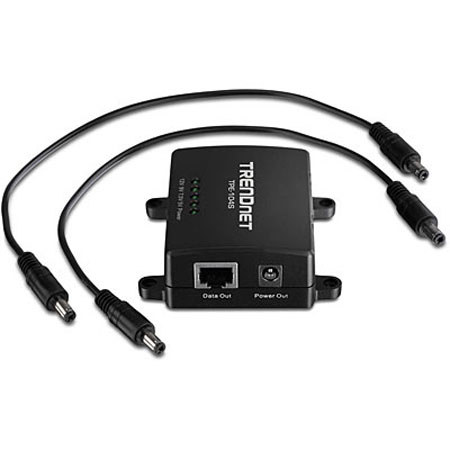

TRENDnet TPE-104S Power Over Ethernet (PoE) Splitter

SKU: TNPE104S MFR: TPE-104S
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$14.99
Qty:
Add to Wishlist

About the TRENDnet TPE-104S

The TRENDnet TPE-104S Power over Ethernet (PoE) Splitter is used to install non-PoE devices in remote locations. It splits a networked PoE signal into separate power and data sources. Run an Ethernet cable from a PoE switch (or injector) for distances up to 100 meters and then split the PoE signal into separate data and power sources in order to network a non-PoE device.

No need to install non-PoE devices near a power outlet. Save installation and equipment cost when installing access points, IP cameras and more in a remote location. A handy toggle switch adjusts output power to 5V, 7.5V, 9V, or 12V in order to match non-PoE device power requirements. This compact splitter safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network.

TRENDnet TPE-104S Includes

  • TRENDnet TPE-104S Power Over Ethernet (PoE) Splitter
  • Quick Installation Guide
  • 2 x Jumper Cable (2.0 x 2.0mm, 2.0 x 2.5 mm)
  • TRENDnet 3 Year Limited Warranty

TRENDnet TPE-104S Features

  • Converts non-PoE devices with Power over Ethernet support
  • 1 x 10/100Mbps PoE Auto-MDIX Data In port
  • 1 x 10/100Mbps Auto-MDIX Data Out port
  • Power out port
  • 1 x 33cm (13") jumper cable with a 2.0mm connection to the splitter and 2.0mm pin connection to powered device
  • 1 x 33cm (13") jumper cable with a 2.0mm connection to the splitter and 2.5mm pin connection to powered device
  • For a product with a 1mm pin power connection, use TRENDnet's TV-JC35 (3.5mm to 1mm Jumper Cable-sold separately)
  • Power LED indicator
  • Install non-PoE devices where a power outlet is not available
  • Reduce installation and network equipment costs
  • Safeguards network device with short circuit protection
  • Adjustable output DIP switch 5V, 7.5V, 9V and 12V adjustable output
  • Auto-sensing power drawn from 802.3af power source equipment(PSE) devices
  • Supplies power up to 15.4 Watts
  • Light weight and compact size

TRENDnet TPE-104S Specifications

Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
Network Media 10Mbps: UTP/STP Cat. 5 Up to 100 meters
100Mbps: UTP/STP Cat. 5 and 5e Up to 100 meters
Ports 1 x 10/100Mbps Data and Power In
1 x 10/100Mbps Data Out
1 x 5.5mm pin Power Out
Switch Adjustable output power DIP switch (5V, 7.5V, 9V, 12V)
Power Power In: 48VDC 0.38A
Power Out: 5V(2A), 7.5V(2A), 9V(1.7A), 12V(1.2A)
Power Consumption Max. 0.3 watt
Jumper Cable 1 x (2.0 x 2.0mm)
1 x (2.5 x 2.0mm)
Temperature Operation: 0deg.C-45deg.C (32deg.F- 113deg.F)
Storage: -20deg.C-90deg.C (-4deg.F-194 deg.F)
Humidity Max. 90% (non-condensing)
Certifications CE, FCC
Dimensions 70x45x25mm / 2.75x1.77x0.98"
Weight 45g (1.58 oz)
