TRENDnet

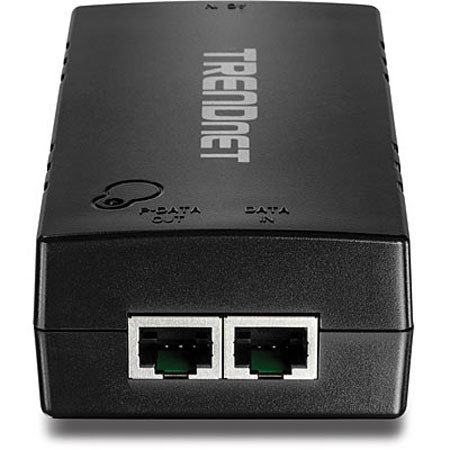

TRENDnet Poe Plus Injector

SKU: TNPE105I MFR: TPE-105I
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$32.49
Qty:
Add to Wishlist

About this item

The TRENDnet Poe Plus Injector combines electrical power with a network connection to produce a Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter.

Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch-use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.

What's Included With This Item

  • TRENDnet Poe Plus Injector
  • Quick Installation Guide
  • Power Cord
  • TRENDnet 3 Year Limited Warranty

Key Features

  • IEEE 802.3at PoE+ (30 Watts) compliant
  • Backwards compatible with IEEE 802.3af PoE (15 Watt) devices
  • Automatically supplies a PoE+ (30 Watts) or PoE (15 Watts) connection to the device
  • Integrated power supply
  • Network devices for distances of up to 100 meters (328 ft.)
  • 1 x 10/100 Mbps Auto-MDIX Data In port
  • 1 x 10/100 Mbps PoE+ Auto-MDIX Data Out port
  • Power port with LED indicator
  • Easily install a PoE+ or POE device where a power outlet is not available
  • Reduce installation and network equipment costs

Technical Specs

Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus (PoE+)
Network Media 10 Mbps: UTP/STP Cat. 5 and 5e up to 100 meters
100 Mbps: UTP/STP Cat. 5 and 5e up to 100 meters
Ports 1 x 10/100 Mbps DATA-IN (Data only)
PoE Delivery Pair 1: Pin 1, 2
Pair 2: Pin 3, 6
Power Input: 100-240V, 50-60Hz, 0.65A max.
Power Consumption Max 30 Watts
Temperature Operation: -10deg.C-45deg.C (14deg.F- 113deg.F)
Storage: -20deg.C-60deg.C (-4deg.F-140deg.F)
Humidity Max 95% (non-condensing)
Dimensions (WxDxH) 133x63x35mm / 5.23x2.48x1.37"
Weight 162 g (5.71oz)
