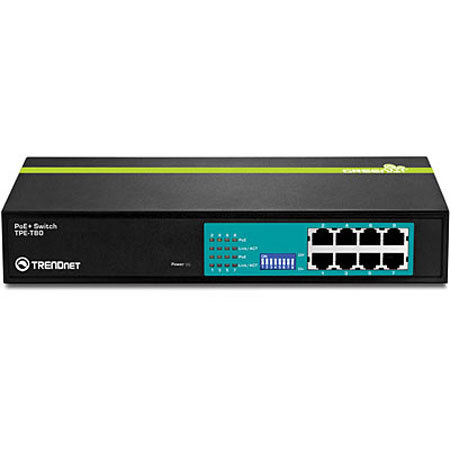

TRENDnet TPE-T80 8-Port 30 Watt 10/100Mbps PoE+ Switch

SKU: TNPE80 MFR: TPE-T80
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$215.67
Qty:

Add to Wishlist In Stock

About the TRENDnet TPE-T80

The TRENDnet TPE-T80 8-Port 30 Watt 10/100Mbps PoE+ Switch reduces equipment and installation costs by delivering data and power over existing Ethernet cables. The IEEE 802.3at PoE+ standard supplies up to 30 watts of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras and VoIP telephony systems. Auto sensing technology delivers up to 30 watts to 802.3at PoE+, 15 watts to 802.3af PoE and only data to non-PoE devices. GREENnet technology reduces energy costs by up to 75% when the switch is not in use.

It boost office efficiency and reduce network congestion with a total switching capacity of 1.6Gbps. LED indicators display device status for easy power management and troubleshooting. An internal power supply reduces clutter and DIP switches on the front panel allow managers to manually cut PoE power to a given port. Use this switch with TRENDnet PoE Splitters to install non-PoE devices in remote locations.

TRENDnet TPE-T80 Includes

  • TRENDnet 8-Port 30 Watt 10/100Mbps PoE+ Switch
  • Quick Installation Guide
  • Power Cord
  • TRENDnet 3 Year Limited Warranty

TRENDnet TPE-T80 Features

  • IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
  • Support PoE class 2 (7 watts), 3 (15.4 watts) and 4 (30 watts)
  • 8 x 10/100Mbps Auto-MDIX PoE+ ports
  • Provides up to 30 watts per PoE port
  • 1.6 Gbps switching fabric
  • 8 DIP switches turns PoE support on/off per port
  • Full wire-speed non-blocking reception and transmission
  • Store-and-forward switching method
  • Back pressure Flow Control for half-duplex mode
  • IEEE 802.3x Flow Control for full-duplex mode
  • 1.25Mbits RAM Data Buffer
  • 4K MAC address entries
  • 250 watt Internal Power supply: AC input (90-260V/AC, 50-60Hz)
  • Plug and Play
  • Sturdy metal enclosure

TRENDnet TPE-T80 Specifications

Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control
Ports 8 x 10/100Mbps Auto-MDIX PoE+ ports
PoE DIP Switches Individually turns PoE support on/off for each port
Data Transfer Rate Ethernet: 10/20Mbps (half/full duplex)
Fast Ethernet: 100/200Mbps (half/full duplex)
Data RAM Buffer 1.25Mbits
Address Table 4K MAC entries
Switch Fabric 1.6 Gbps
Power 90-260V AC 50/60Hz, internal universal switching power
Diagnostic LEDs Power, PoE, Link/Activity
Power Consumption Min: 4 Watts (standby)
Max: 250 Watts
PoE Max: 240 Watts (8 x 30 watts PoE devices connected)
Temperature Operating: 0deg. - 55deg.C (32deg. - 131deg.F)
Storage: -20deg. - 90deg.C (-4deg. - 194deg.F)
Humidity Max. 90% (non-condensing)
Power over Ethernet Up to 30 watts per port; PD classification
Polymer switch for short protection
PoE: pin 3,6 for power+ and pin 1,2 for power- (mode A)
Dimensions 263x160x44mm / 10.4x6.3x1.73"
Weight 1.3 kg / 2.86 lbs
