TRENDnet

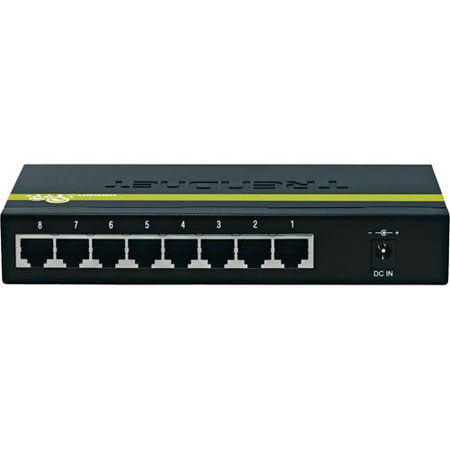

TRENDnet TEG-S80g 8-Port Gigabit GREENnet Switch with Full-Duplex Mode

SKU: TNTEGS80G MFR: TEGS80G
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$36.49
Qty:
Add to Wishlist

About the TRENDnet TEG-S80g

The compact 8-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 16Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

TRENDnet TEG-S80g Includes

  • TRENDnet TEG-S80g 8-Port Gigabit GREENnet Switch
  • Multi-Language Quick Installation Guide
  • TRENDnet 5 Years Limited Warranty

TRENDnet TEG-S80g Features

  • 8 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode
  • Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
  • Operates and maximizes packet filtering and forwarding rate
  • Jumbo Frame support up to 9612Bytes
  • Sturdy metal housing
  • Diagnostic LEDs and Plug & Play

TRENDnet TEG-S80g Specifications

Hardware Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
Network Media Ethernet: Cat. 3,4,5, up to 100m
Fast Ethernet: Cat. 5, up to 100m
Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m
Data Rate Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Gigabit Ethernet: 2000Mbps (Full-Duplex)
Protocol / Topology CSMA/CD, Star
Power Consumption 5w (max)
Switch Fabric 16Gbps Forwarding Capacity
Interface 8 10/100/1000Mbps Auto-MDIX RJ-45 Ports
Data RAM Buffer 128KBytes
Filtering Table 4K entries
Diagnostic LED Power, Link/ACT, 100Mbps, 1000Mbps
Power Adapter 7.5V DC, 1A external power adapter
Temperature Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 5%~90% (non-condensing)
Certifications FCC, CE
Dimension 171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
Weight 450g (15.9 oz)
