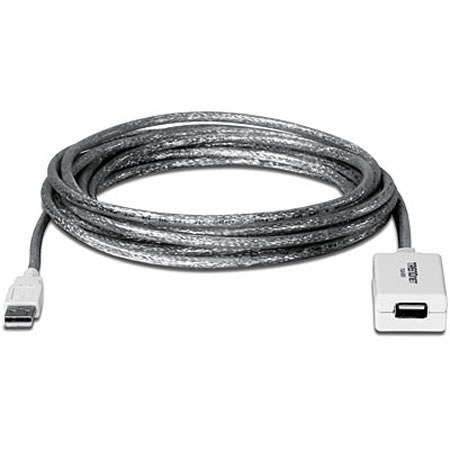

TRENDnet TU2-EX5 5m USB 2.0 Extension Cable

See all TRENDnet items
TRENDnet TU2-EX5: Picture 1 thumbnail TRENDnet TU2-EX5: Picture 2 thumbnail TRENDnet TU2-EX5: Picture 3 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About TRENDnet TU2-EX5

The TRENDnet TU2-EX5 5m USB 2.0 Extension Cable is perfect for extending the distance between USB devices and your computer. Up to 5 extender cables can be linked together. This device repeats the USB signal up to 25 meters (82 ft.) with maximum reliability and performance.

TRENDnet TU2-EX5 Features

  • One male and one female type A USB 2.0 port
  • Supports USB speeds: High-Speed (480 Mbps), Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps)
  • Supports up to 5 USB extension layers
  • Repeats the USB signal to maximum consistency and performance at distance up to 25 m (82 ft.)
  • Upstream: supports High-Speed and Full-Speed
  • Downstream: support High-Speed, Full-Speed and Low-Speed

TRENDnet TU2-EX5 Specifications

USB 2.0, 1.1 Compliant (Type A)
Data Rate
High-Speed: 480 Mbps
Full-Speed: 12 Mbps
Low-Speed: 1.5 Mbps
Cable Length
5m (16.4')
Max Distance
25m (82.02')
Operating Temperature
0deg.C - 40deg.C (32deg.F - 104deg.F)
Storage Temperature
-5deg.C - 55deg.C (14deg.F - 131deg.F)
Max 85% (non-condensing)
192g (6.77oz)
