TRENDnet SecurView PoE Dome Internet Camera

SKU: TNVIP252P MFR: TV-IP252P
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

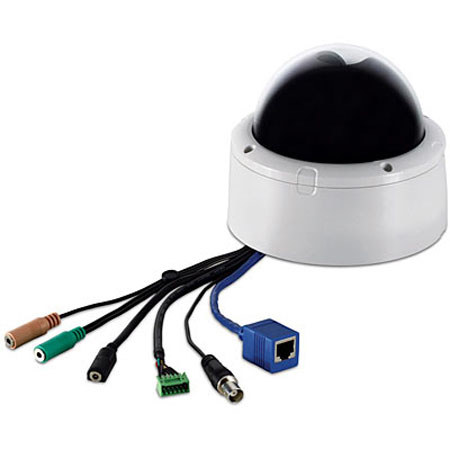

About the TRENDnet SecurView PoE Dome

The TRENDnet PoE Dome Internet Camera is designed for indoor enterprise class security surveillance applications. View and manage the tamper resistant dome IP camera from any Internet connection. Manually pan the camera side-to-side 350 degrees and tilt it up-and-down 160 degrees to fix its final viewing angle. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology.

Manage up to 16 TRENDnet cameras with the included complimentary camera management software. Advanced features include motion detection recording with two motion detection windows, email alerts, scheduled recording sessions, Samba client saves video to network storage devices, dual streaming MPEG-4/MJPEG image compression, two-way audio support (mic and speaker sold separately), Input/Output ports, digital zoom and an analog BNC video-out connector. A wall/ceiling mounting kit is included and the off-white IP camera housing blends into most environments.

TRENDnet SecurView PoE Dome Includes

  • TRENDnet Poe Dome Internet Camera
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Cat.5 Ethernet Cable (1.8m / 5.9')
  • GPIO Adapter
  • Power Adapter (12V DC, 1.5A)
  • TRENDnet 3 Year Limited Warranty

TRENDnet SecurView PoE Dome Features

  • Record streaming video to your computer or network storage devices
  • Manually pan 350deg. side-to-side and tilt 160deg. up-and-down for a fixed final viewing angle
  • Compatible with 802.3af PoE compliant devices
  • 1 x 10/100Mbps PoE RJ-45 Ethernet port
  • GPIO ports: 2 in, 1 out
  • TV-out BNC connector
  • Optional power port: power provided by optional power port if PoE networked cable not used
  • 3 password protected authorization levels: (1) Guest User: video with one way audio viewing only; (2) General User: Guest User functionality as well as viewing option controls of live view page; (3) Administrator: full management controls
  • Image controls: Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical)
  • 3x digital zoom
  • High quality Dual Streaming MPEG-4 and MJPEG video recording with up to 30 frames per second
  • Up to VGA, 640 x 480 pixel resolution
  • Supports TCP/IP networking, SMTP Email, HTTP, Samba and other Internet protocols
  • 62 degree viewing angle, 4mm focal length and 2.0 F/No
  • Motion detection triggered email alerts and image upload via FTP
  • Control two adjustable motion detection windows with just-in-time snapshot
  • Hear and talk to people in your camera's viewing field through your computer (mic and speaker sold separately)
  • Samba client saves video to network storage devices
  • Quick Universal Plug and Play (UPnP) installation
  • Camera browser can be accessed using Internet Explorer 6.0 above
  • Complimentary SecurView software: view and record up to 16 SecurView cameras simultaneously
  • Complimentary SecurView software: supports Windows 2000/XP/Vista operating systems

TRENDnet SecurView PoE Dome Specifications

Camera Sensor 1/4" low lux CMOS sensor
Resolution: 640 x 480 pixels
Focal length: 4mm
F/No: F2.0 (Board Lens)
Minimum illumination: 0.1 Lux at F2.0
View angle:
Horizontal: 51deg.
Vertical: 45deg.
Diagonal: 64deg.
Audio External mic/audio in (sold separately)
External speaker/audio out; mono (sold separately)
Audio codec: PCM/AMR
Image & Video Compression: MPEG-4/MJPEG dual streaming, 3GPP
Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120) up to 30fps
Mirror image: vertical/horizontal
Frequency NTSC/60Hz
Manual Pan/Tilt/Rotate Pan: +175 to -175
Tilt: +80 to -80
Rotate: +90 to -90
GPIO 2 input and 1 output
TV-out BNC connector/ 1 Vp-p/ 75 Ohms
Network IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
IEEE 802.3af PoE
LED Power, link/act
Reset Button Reset settings
Power Consumption 8 watts (max)
Power 12V DC, 1.5A external power adapter
Temperature Operating: 0deg.C - 45deg.C (32deg.F - 113deg.F)
Storage: -15deg.C - 60deg.C (14deg.F - 140deg.F)
To View Internet Explorer 6.0 or above
To Run Software Windows 2000, XP, Vista, Windows 7
SecurView Software Channel: supports up to 16 cameras
Network Protocols TCP/IP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP Server
Samba Client
PPPoE
UPnP, Bonjour
RTP (Real Time Protocol)
RTSP (Real Time Streaming Protocol)
RTCP (Real Time Control Protocol)
Image Brightness, saturation, sharpness, mirror (horizontal/vertical)
Recording Recording type: event based (motion detection and digital input trigger), continuous and scheduled
Storage size: 32MB (minimum)
Snapshot Trigger event: motion detection
Action: send alert email and/or upload to FTP
Port Settings HTTP port: 80 (default)
RTSP port: 554 (default)
Digital Zoom 3x
Dynamic DNS Yes
Time Synchronize with NTP server or set time/date manually
Dimensions 140x120x140mm / 5.51x4.72x5.51"
Weight Camera: 600g / 21.16oz
