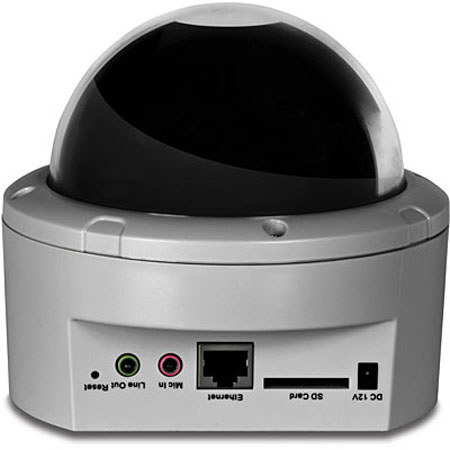

TRENDnet Megapixel PoE Dome Internet Camera

SKU: TNVIP262P MFR: TV-IP262P
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the TRENDnet Megapixel PoE Dome

The TRENDnet Megapixel PoE Dome Internet Camera is an indoor, enterprise class surveillance camera capable of transmitting H.264 video at up to 1280 x 1024 resolution. View and manage the tamper resistant dome IP camera from any computer with an internet connection. Manually pan the camera side-to-side 350deg. and tilt it up-and-down 70deg. to fix its final viewing position. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology. View this camera on your mobile device with TRENDnet's free App.

Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Define up to three motion detection windows with email alert, image snapshot and continuous recording triggers. Scheduled recording sessions and define video storage location with Samba client support. Multiple video streaming support for H.264, MPEG-4 and MJPEG compression types. Other features include two-way audio support (mic and speaker sold separately), date / time text overlay, mask overlay to conceal sensitive areas and image flip capabilities for upside down installations. Integrated cabling allows for easy wall / ceiling mounting and the off-white IP camera housing blends into most environments.

TRENDnet Megapixel PoE Dome Includes

  • TRENDnet Megapixel Poe Dome Internet Camera
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility, Software & User's Guide)
  • Power Adapter (12 V DC, 1.5 A)
  • Network Cable (1.5m / 5')
  • Camera Mounting Kit
  • TRENDnet 3 Year Limited Warranty

TRENDnet Megapixel PoE Dome Features

  • IEEE 802.3af PoE compliant device
  • 1 x 10/100 Mbps PoE Auto-MDIX port
  • Optional power port for non-PoE installations
  • SD / SDHC card slot
  • Microphone and speaker audio ports
  • Tinted dome
  • Camera LEDs display link and activity status (can be turned off)
  • Supports H.264, MPEG-4 and MJPEG video compression
  • 3GPP support
  • Resolution up to 1280 x 1024 pixels at up to 15 frames per second (fps) and 640 x 480 pixels at up to 30 fps
  • Supports simultaneous video streaming
  • Video mirror support (horizontal / vertical) enables upside down installations
  • Two way audio (optional third party microphone and speakers required)
  • Fully integrated cabling simplifies installation
  • Dynamic DNS support
  • Images controls: brightness, saturation and sharpness
  • Mask overlays conceal sensitive areas
  • Date, time and text overlays
  • Supports TCP/IP networking, email, HTTP and other Internet protocols
  • Record streaming video to your computer or Network Storage device with Samba support
  • Three motion detection windows with just-in-time snapshot, motion detection triggered email alerts and image upload to FTP
  • Send instant messages to Jabber client via Jabber Server
  • Supports Quality of Service (QoS) with Differentiated Services Code Point (DSCP)
  • Quick Universal Plug and Play (UPnP) installation

TRENDnet Megapixel PoE Dome Specifications

Camera Sensor 1/4" Megapixel CMOS sensor
Max. Resolution: 1280 x 1024 pixels
Board Lens
Focal Length: 3.58 mm
Aperture (F/No): F2.0 +/- 5%
Minimum illumination: 1 Lux
Viewing angle:
Horizontal: 63deg.
Vertical: 46deg.
Diagonal: 74deg.
Audio Microphone outport (microphone sold separately)
Audio outport: Mono (speakers sold separately)
Sensitivity: -42 dB +/- 3 dB
Frequency: 100-10,000 Hz
S/N: 65 dB
Format: PCM / AMR
Pan / Tilt (Manually) Manually adjust camera to final fixed position
Pan: -175deg. - +175deg.
Tilt: 20deg. - 90deg.
SD Slot Supports SD / SDHC (up to 32 GB)
Network IEEE 802.3u 10/100 Mbps Fast Ethernet
IEEE 802.3af PoE
LED Power, Link/Act (can turn off LEDs)
Reset Button Reboot or restore to factory default
Power Consumption 7 Watts max
Power Input: 100 - 240V AC, 0.5A, 50-60Hz
Output: 12VDC 1.5A external power adapter (for non-PoE installations)
Temperature Operating: 0deg.C - 50deg.C (32deg.F - 122deg.F)
Storage: -15deg.C - 60deg.C (5deg.F - 140deg.F)
Humidity Max 90% (non-condensing)
Management Interface Internet Explorer 6.0 or above
To Run SecurView Pro Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)Windows Server 2003, 2008
SecurView Pro Channel: supports up to 32 cameras Record / Playback / Motion Detection / Audio
Network Protocols TCP/IP, IPv4, IPv6, UDP, ICMP
DHCP client, NTP client, DNS client, DDNS client, SMTP client, FTP client
HTTP, HTTPs
Samba client
PPPoE
UPnP
Bonjour
RTP (Real Time Protocol)
RTSP (Real Time Streaming Protocol)
RTCP (Real Time Control Protocol)
SSL
ONVIF
3GPP (video only)
Remote Remote management supported
Backup / Restore Save / retrieve configuration files
Image Automatic exposure, white balance and gain control
Brightness, saturation, sharpness, light frequency and mirror (horizontal / vertical)
Video Encoding type: H.264, MPEG-4, MJPEG
Compression: 5 levels
Resolution / Frame Rate:
SXGA (1280 x 1024) up to 15fps
720p (1280 x 720) up to 20fps
VGA (640x480) up to 30fps
QVGA (320x240) up to 30fps
QQVGA (160x120) up to 30fps
Multi-Stream:
H.264: SXGA, VGA, QVGA, QQVGA, 720P
MPEG-4: VGA, QVGA, QQVGA
MJPEG: SXGA, VGA, QVGA, QQVGA, 720P
Recording / snapshot Recording type: continuous, schedule, motion detection, or snapshot
Event Management Event trigger: motion, schedule
Store video file to SD card or storage device
Send Instant message to Jabber client via Jabber server
Overlay Text overlay: time, date and text
Mask overlay: define up to 2 opaque boxes to conceal portions of the recording area
QoS DSCP
Port Settings HTTP port: 80 (default)
RTSP port: 554 (default)
Digital Zoom 3x
Dynamic DNS Yes
Time Synchronize with NTP server or set time / date manually
Email Supports up to 2 destination accounts
System Log 100 entries (max.)
Dimensions 131x131x127mm / 5.15x5.15x5"
Weight 570g (20.10oz)
