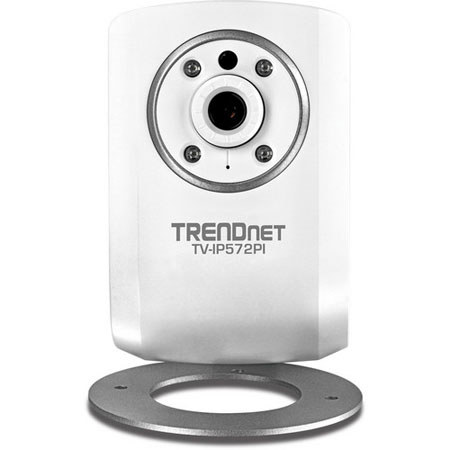

TRENDnet TV-IP572PI Megapixel PoE Day/Night Internet Camera

SKU: TNVIP572PI MFR: TV-IP572PI
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$119.49
Qty:

Add to Wishlist In Stock

About the TRENDnet TV-IP572PI

The TRENDnet Megapixel PoE Day/Night Internet Camera transmits real-time Megapixel video over the Internet. Record crisp video in complete darkness for distances of up to 7.5 meters. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology (See TRENDnet PoE Switches and Injectors).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video profiles to record HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, H.264 / MPEG-4 / MJPEG image compression, date-and-time overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens and four times digital zoom. A wall / ceiling mounting kit is included and the camera's off white housing blends into most environments.

TRENDnet TV-IP572PI Includes

  • TRENDnet Megapixel PoE Day/Night Internet Camera
  • CD-ROM (Utility & User's Guide)
  • Multi-Language Quick Installation Guide
  • Network Cable (1.5 m / 5 ft.)
  • Power Adapter (5V, 1.2A)
  • Camera Mounting Kit
  • TRENDnet 3 Year Limited Warranty

TRENDnet TV-IP572PI Features

  • 1 x 10/100 Mbps Auto-MDIX PoE port
  • Power and activity LED indicators (can be disabled)
  • Night vision up to 7.5 meters indoors
  • 2-way audio: built-in microphone and audio out port for third party speakers
  • 4x digital zoom
  • Micro SD card slot
  • Manual focus lens
  • Stream and record up to 4 different video profiles simultaneously
  • Stream Internet camera video to a 3GPP compatible wireless device
  • High quality H.264, MPEG-4 and MJPEG video recording
  • Supports up to 1280 x 800 pixel resolution at up to 30 frames per second
  • Image controls: Brightness, contrast, auto gain control, noise reduction, saturation, sharpness, back light control, hue, frequency, flip image vertically, mirror image horizontally and black / white mode
  • Event Trigger: motion detection or digital input signal
  • Event Action: send real-time snapshots (up to 3 before and 3 after the event) or video recording (up to 5 seconds before and 10 seconds after the event) to FTP or email
  • Samba client support to record to a NAS drive
  • Supports TCP/IP networking, Email, HTTP, Samba and other Internet protocols
  • System controls: Define up to 20 user login accounts; Set the date and time or synchronize with an NTP server
  • Quick Universal Plug and Play (UPnP) installation
  • Mounting base and mounting hardware included
  • Manage up to 32 cameras
  • Compatible with Windows and Microsoft Server 2008
  • Multiple language support
  • Camera Viewing: Preset viewing modes, Program custom viewing modes, Full screen view, Drag and drop live feeds to a new location, Program camera cycle viewing sequence, Motion detection brings video forward, Side, top & bottom tool bars can be hidden, Web based access from smart phones and tablets
  • Recording options: Program weekly recording schedules, Event trigger recording, Date and time overlay, Mask overlay to conceal sensitive areas, Save a single video stream to multiple locations simultaneously, Define recording quotas by recording time or space allocation
  • Search and Playback: Navigation timeline provides a quick visual reference to the recorded content, Search continuous recordings by motion, Search recordings by motion within a defined field (a portion of the viewing area), Time lapse playback search

TRENDnet TV-IP572PI Specifications

Sensor 1/4" CMOS Sensor
Board Lens Focal Length 4 mm
F/No 1.5
Minimum illumination 0 lux
Focus Depth 20 cm - infinity
View Angle Horizontal: 51.8 degrees
Vertical: 33.8 degrees
Diagonal: 59.6 degrees
Digital Zoom 4x
Audio Built-in omni-directional microphone
Sensitivity: -40 dB +/- 3 dB (5 meters max)
Frequency: 100-20000 Hz
S/N: >60 dB
Codec: PCM / ADPCM
External speaker output (speaker sold separately)
Two-way audio with echo canceling
Day / Night Built-in ICR
Nigh vision (IR) supports up to 7.5 meters
Network IEEE 802.3u 10/100 Mbps Auto-MDIX Fast Ethernet
IEEE 802.3af Power over Ethernet
LED Power, Link / Act
Micro SD slot Supports Micro SD (SDHC, up to 32 GB)
Reset Button Reset to factory default
Power Consumption Max 4.95 Watts
Power Input: 100-240V, 50/60 Hz, 0.2A
Output: 5V, 1.2A external power adapter
Temperature Operating: 0deg.C - 40deg.C (32deg.F - 104deg.F)
Storage: -25deg.C - 70deg.C (-13deg.F - 158deg.F)
Humidity Max 95% (non-condensing)
Management Interface Internet Explorer 7.0 or above
Firefox, Safari and Chrome
To Run software Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Windows Server 2003, 2008
SecurView Pro Software Channel: supports up to 32 cameras
Record / Playback / Motion Detection / Audio
Network Protocols IPv4, ARP, TCP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP
Samba Client
PPPoE
UPnP
LLTD
RTP (Real Time Protocol)
RTCP (Real Time Control Protocol)
RTSP (Real Time Streaming Protocol)
3GPP
System Web based administration
NIPCA support
Access Up to 20 user accounts
Backup / Restore Save / retrieve configuration files
Log System log up to 500 entries
Micro SD View, download, delete files
Format and remove Micro SD card
Image Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal / vertical), black & white, indoor, outdoor, schedule mode
Shutter: 1/3.25s, 1/7.5s, 1/10s and 1/15s
Video Setting Profile 1: H.264 / MPEG-4
Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
Profile 2: H.264 / MPEG-4
Resolution: 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
Profile 3: MJPEG
Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
Max frame rate: 1280 x 800 at 5fps, 640 x 400 / 320 x 192 at 30fps
JPEG quality: Low, Standard, Excellent
Profile 4: H.264 / MPEG-4
Resolution: 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
3GPP Video codec: MPEG-4 (no audio support)
Protocols: RTSP, RTP
Recording Resolution: Define individual resolution for up to 4 profiles
Required storage: 32MB (minimum per profile)
Recording type: event based (motion detection), continuous and scheduled
Event Action Trigger event: motion detection
Action: send real-time snapshot or video recording to FTP or email
Port Settings HTTP port: 80 (default)
RTSP port: 554 (default)
Time Synchronize with NTP server or set time / date manually
Dimensions 75x115x30mm / 2.95x4.52x1.18"
Weight 125g (4.40oz)
