Toshiba IK-HD1D Camera Control Unit
Your card will only be charged once item ships.
What's Included With This Item:
- Toshiba 1 Year Warranty
The Toshiba IK-HD1D Camera Control Unit (CCU) is an interface box for connecting a Toshiba IK-HD1H 3CCD HD camera head to an HD video monitor. Nearly identical to the IK-HD1E, the 'D' model also provides analog and digital HD video connections, with the main difference being the substitution of a DVI-D output for HD-SDI. This means you can use lower-cost consumer HD monitors with DVI/HDMI connections as opposed to the more expensive HD-SDI displays. The remote interface is also different, an 8-pin mini-DIN versus a 9-pin DSUb, while the component/RGB connectors--in the form of three BNC terminals (Y/Pb/Pr)--remain the same.

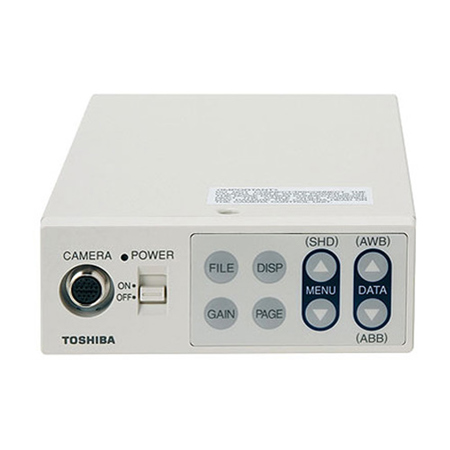

Most camera controls are accessed from the front of the unit. These include a power On/Off switch, an AWB and gain switch, buttons for menu selection and a button to change scene files and display modes. The rear of the unit adds a 59.94i to 60i format switch as well as a key lock On and Off switch. Also located on the back of the unit are two sync ports, a wired remote control terminal and a 12VDC power input.
|Applications||Scientific Imaging, Specialty Broadcast, Security, Industrial|
|Connectors||DVI: DVI-D (x1 Output)
Component/RGB: BNCx3 (x1 Output)
External Sync: BNCx1
Sync Out: BNCx1
Remote Control: 8-pin Mini-DIN, RS-232C
|Scanning Frequency||H: 33.7kHz V: 59.94Hz
H: 28.1kHz V: 50Hz
|Operating Temperature||32 - 104deg.F (0 - 40deg.C)|
|Dimensions (WxHxD)||4.3x1.6x7.3" (10.92x4.06x18.5cm)|
