Toshiba

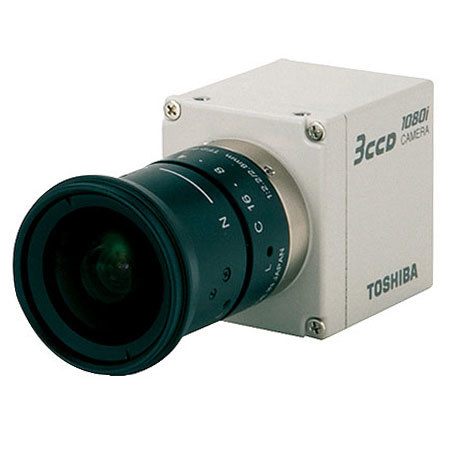

Toshiba IK-HD1H 3 CCD Remote Color Camera Head, 1080i Signal System, 800 TV Lines Vertical Resolution, 56 dB Signal-to-Noise Ratio

SKU: TOIKHD1H MFR: IK-HD1H
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$7,200.00 List Price

Our Price

$5,157.95
Free Expedited Shipping
Qty:
Add to Wishlist

About the Toshiba IK-HD1H

The Toshiba IK-HD1H 3 CCD Remote Color Camera Head is an ultra-lightweight camera designed for broadcast, medical, scientific and commercial uses. Wherever a super-compact professional-grade camera is necessary, the IK-HD1H has it covered. Boasting HDTV capabilities, pictures truly come to life, ensuring users see every detail. It features such as a highly sensitive sensor, HD-SDI out and as sophisticated DSP, make the IK-HD1H a capable performer in almost any specialized video application.

Toshiba IK-HD1H Includes

  • Toshiba IK-HD1H 3 CCD Remote Color Camera Head
  • Tripod Mount
  • M3 Screws (6)
  • Toshiba 1 Year Warranty

Toshiba IK-HD1H Specifications

Signal System 1080i
Image Sensor 3x 1/3" IT CCD
Resolution Horizontal: 800 TV Lines across 56% of screen width (equal 16:9 screen height
Vertical: 800 TV Lines
Minimum Illumination 2000 lux at f/6.8 (100% Video Out)
210 lux at f/2.2 / 0dB (100% Video Out)
105 lux at f/2.2 / 6 dB Gain (100% Video)
13 lux at f/2.2 / 18dB Gain
Signal-to-Noise Ratio 56 dB (Gain at 0dB + DNR OFF)
Controls Polecam Compatible
Sync Internal/External Automatic Switching
Video Output Composite: BNC
Component: BNC
HD-SDI: BNC (x1)
Control Ports RS-232C: 9-Pin Female D
Power Requirements 12 VDC
Power Consumption 10.3W
Operating Temperature 32-104deg.F (0-40deg.C)
Dimensions (WxHxD) 1.3x1.5x4" (3.3x3.81x10.16cm)
Weight 2.3oz (65.20g)
