TP-Link

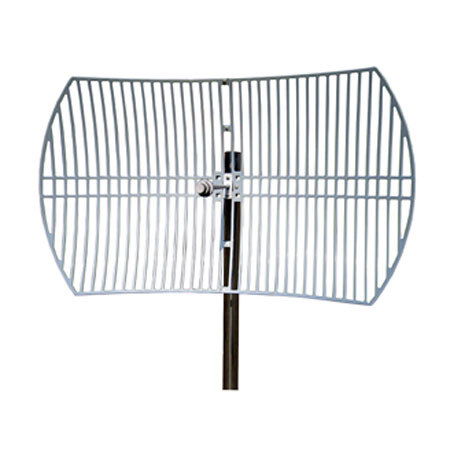

TP-Link 5GHz 30dBi Outdoor Grid Parabolic Antenna

SKU: TPLANT5830B MFR: TL-ANT5830B
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The TP-Link 5GHz 30dBi Outdoor Grid Parabolic Antenna is ideal for outdoor use by attaching to your wireless access points/routers which operate on less crowded 5GHz band. It could be used for long distance point-to-point connection, providing your stable wireless links. It is very easy to use, no con-figuration or software installation required.

What's Included With This Item

  • TP-Link 5GHz 30dBi Outdoor Grid Parabolic Antenna
  • Mounting Kits
  • TP-Link Warranty

Key Features

  • Compliant with 802.11a/n, 5GHz wireless application
  • 30dBi signal gain
  • Direction operation
  • N Type Female connector
  • Provided mounting kits enable easy installation for various environments

Technical Specs

Frequency 5.15-5.85GHz
Impedance 50 Ohms
Gain 30dBi
VSWR(MAX.) = 1.8
HPBW/H( deg.) 6
HPBW/V( deg.) 4
Polarization Vertical or Horizontal
Connector Type N Female
Mounting Pole Mount
F/B Ratio >30dB
Maximum Input Power 100W
Mounting Mast Diameter 30-50 mm
Radome Material Aluminium Die Cast
Standards RoHS, WEEE
Survival Wind Speed 241Km/hr
Dimensions 600x900mm / 23.62x35.43"
