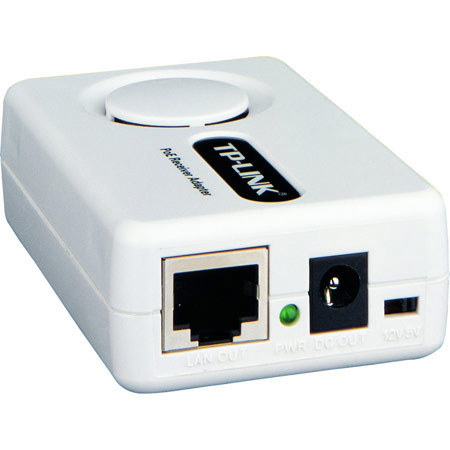

TP-Link TL-POE10R PoE Splitter, IEEE 802.3af Compliant

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Add to Wishlist

About the TP-Link TL-POE10R

The TP-Link TL-POE10R PoE Splitter fully complies with IEEE 802.3af standard and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-Link's TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

TP-Link TL-POE10R Features

  • IEEE 802.3af compliant
  • Delivers power up to 100 meters
  • Optional 12V DC 9V DC or 5V DC power supply
  • Plug-and-Play, requires no configuration

TP-Link TL-POE10R Specifications

Interface 2 10/100Mbps RJ45 Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable
(maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable
(maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)
LED Indicator PWR
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC Or 5VDC Power Supply
Certification FCC, CE
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Operating Temperature 0deg.C to 40deg.C (32 deg.F to 104 deg.F)
Storage Temperature -40deg.C to 70deg.C (-40 deg.F to 158 deg.F)
Operating Humidity 10%-90% non-condensing
Storage Humidity 5%-90% non-condensing
Power Supply 12W (12VDC)
9W (9VDC)
10W (5VDC)
Dimensions ( W x D x H ) 3.2 x 2.0 x 0.9 in.(81 x 51 x 23 mm)
