TP-Link

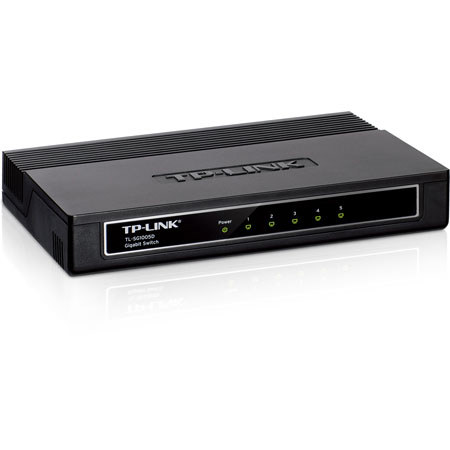

TP-Link 5-Port 10/100/1000M Gigabit Desktop Switch, 10Gbps Switch Capacity, 9V/0.6A AC Power

SKU: TPLSG1005D MFR: TL-SG1005D
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$18.99
Qty:

Add to Wishlist In Stock

About this item

The TP-Link 5-Port Gigabit desktop switch TL-SG1005D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1005D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1005D can save up to 70% of the power consumption, making it an eco-friendly solution for your home or office network.

What's Included With This Item

  • TP-Link 5-Port 10/100/1000M Gigabit Desktop Switch
  • Power Adapter
  • User Guide
  • TP-Link 2 Years Limited Warranty

Key Features

  • Innovative energy-efficient technology saves power up to 70%
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 16Gbps Switching Capacity
  • 9K Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
  • Fanless design ensures quiet operation
  • Desktop or wall-mounting design
  • Plug and Play design simplifies installation

Technical Specs

Standards IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Network Ports 5-10/100/1000Mbps RJ45 Port
Auto Negotiation Yes
Auto MDI/MDIX Yes
Systems Windows 2000/XP/Vista/7
Linux
MAC OS
Forwarding Mode Store and Forward
Switch Capacity 10 Gbps
MAC Address Table 8 K
Jumbo Frame 15 K
Flow Control Yes
Power Saving Up to 75%
LED Power, Link/Act
AC Power 9V / 0.6A
Operating Temperature 0 - 40Deg.C (32 - 104Deg.F)
Storage Temperature -40 - 70Deg.C (-40 - 158Deg.F)
Operating Humidity 0% - 90% non-condensing
Storage Humidity 5% - 90% non-condensing
Certification FCC, CE, RoHs
External Power Supply 100-240VAC, 50/60Hz
Dimensions (W X D X H) 6.5 x 4.3 x 1.1 in. (165 x 108 x 28 mm)
