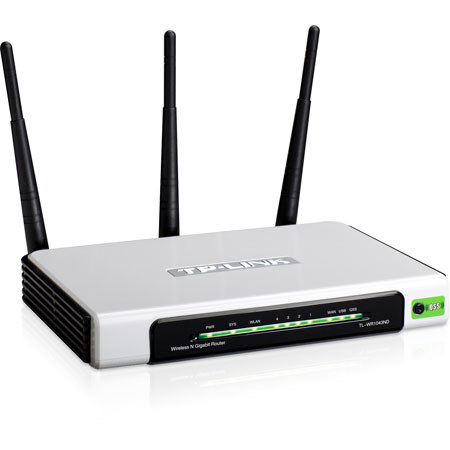

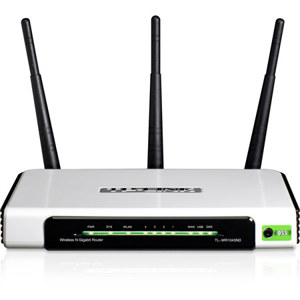

TP-Link TL-WR1043ND Wireless N Gigabit Router

See all TP-Link items
SKU: TPLWR1043ND MFR: TL-WR1043ND
TP-Link TL-WR1043ND: Picture 1 thumbnail TP-Link TL-WR1043ND: Picture 2 thumbnail TP-Link TL-WR1043ND: Picture 3 thumbnail TP-Link TL-WR1043ND: Picture 4 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

$51.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • Gigabit Transfer Rate
  • Connects Wirelessly
  • 2.4 GHz Frequency
  • N-Technology
  • Single-band
  • 802.11 g/b
  • 300 Mbps
  • 4 Ports

About TP-Link TL-WR1043ND

The TL-WR1043ND Ultimate Wireless N Gigabit Router from TP-Link provides wired and wireless network connection with a 4-port Gigabit switch that allows wireless access to multiple devices in your home without running unsightly wires.

The TL-WR1043ND is backward compatible with 802.11b and g and Align technology from Atheros Communications Inc., is forward compatible with higher-performance, multi-stream, MIMO-based 802.11n which offers an impressive 300Mbps. Besides high speed, 802.11n gives you great performance even at long distances, as well as an SPI firewall to prevent your network from being compromised. Other security features include SSID broadcast control, MAC address access control, WEP encryption, WPA/WPA2 and WPA-PSK/WPA2-PSK authentication. It has three external antennas to enhance transmission rates and coverage while CAA technology prevents channel conflicts.

Besides home use, the TL-WR1043ND is a great choice for businesses since it offers priority, support and stability to multiple large bandwith-consuming applications which are subject to interruptions, like voice and video. It also has a USB storage port on the back of the router to connect mass storage devices.

TP-Link TL-WR1043ND Features

  • Gigabit Ethernet ports enabling ultimate transfer speed
  • Centrally storing and content sharing by connecting USB storage drives
  • SST dramatically increases link robustness and stability
  • CCA improves wireless performance while automatically avoiding channel conflicts
  • Wireless N speed up to 300Mbps makes it ideal for bandwidth-consuming or interruption sensitive applications like video streaming, online gaming and VoIP
  • For home and office use, supports PPPoE, Dynamic IP and static IP broadband access and various kind of dialing requirements
  • Supports UPnP, DDNS, static routing, VPN pass-through and data forwarding
  • Features IP, MAC, URL filtering which flexibly controls online access and time
  • Supports SPI firewall and access control management
  • Supports QSS (Quick Secure Setup), provides 64/128/152-bit WEP encryption, WPA/WPA2, WPA-PSK/WPA2-PSK authentication
  • User interface supports free web software updates
  • 3 detachable antennas (reverse SMA connector)

TP-Link TL-WR1043ND Specifications

Interface
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
1 USB 2.0 Port
Button
Quick Setup Security Button
Reset Button
External Power Supply
12VDC / 1.5A
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna
3dBix3 Detachable Omni Directional (RP-SMA)
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP
<20dBm(EIRP)
Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
WAN Type
Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)/BigPond
DHCP
Server, Client, DHCP Client List, Address Reservation
Quality of Service
WMM, Bandwidth Control
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
PPTP, L2TP, IPSec (ESP Head)
Access Control
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management
Access Control
Local Management
Remote Management
Certification
CE, FCC, RoHS
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Operating Temperature
0 Deg.C-40 Deg.C (32 Deg.F-104 Deg.F)
Storage Temperature
-40 Deg.C-70 Deg.C (-40 Deg.F-158 Deg.F)
Operating Humidity
10%-90% non-condensing
Storage Humidity
5%-90% non-condensing
Dimensions( W x D x H )
7.9 x 5.5 x 1.2 in. (200 x 140 x 28mm)
Mfr #
TL-WR1043ND
SKU
TPLWR1043ND
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Angel A  Is this version 2 of the router?
MICHELLE S  This one is a 1.8 version
David F  Whats the signal range on this unit,I`m not familiar with routers,and I have a shop 70' from the house,would this unit be what I need? And does it have wireless printing capability
MICHELLE S  Good Morning.... The TL-WR1043ND has a great range. I push mine at 125-150 ft. Also the signal will change due to traffic on the web. It has a usb port on the back, the manual said storage but I bet you can hook up a printer. The only thing I know about a true wireless printer is the bluetooth chip or a wireless networking card installed on the printer. Hope this helps
