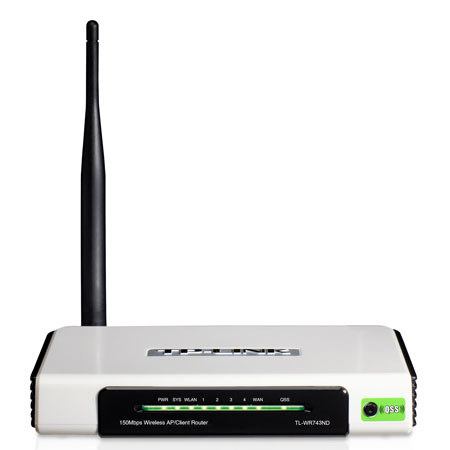

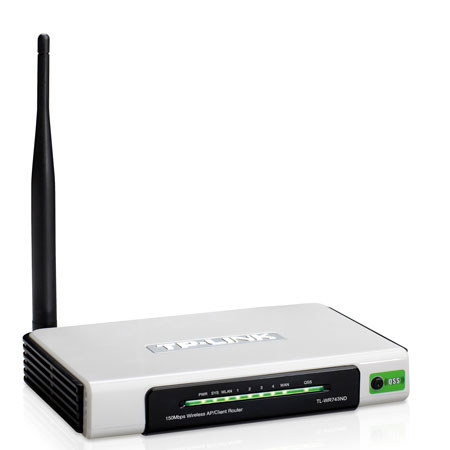

TP-Link TL-WR743ND 150Mbps Wireless Lite N AP/Client Router with 5dBi Detachable Antenna

See all TP-Link items
SKU: TPLWR743ND MFR: TL-WR743ND
TP-Link TL-WR743ND: Picture 1 thumbnail TP-Link TL-WR743ND: Picture 2 thumbnail TP-Link TL-WR743ND: Picture 3 thumbnail TP-Link TL-WR743ND: Picture 4 thumbnail

Our Price

$37.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About TP-Link TL-WR743ND

The TP-Link TL-WR743ND Wireless AP/Client Router is a combined wired/wireless network device, which integrates the functions of Wireless Access Point, AP Client, firewall, 4-port Switch and NAT-Router. It effectively works as a client device with the support of a WISP, to which local computers can connect via wirelessly or cables. It also features a Quick Security Setup function, making establishing a highly secured wireless connection as easy as pushing a button on the device's exterior. Better still, TL-WR743ND supports Passive PoE, convenient for the hardware deployment, especially for places lacking power outlets.

TP-Link TL-WR743ND Features

  • 150Mbps wireless data transfer ideal for lag-free video streaming, online gaming and Internet calling
  • AP Client Router Mode supports WISP Internet connection, allowing users to share an Internet connection wirelessly or via cables
  • Supports up to 30 meters (100 feet) Power over Ethernet capability for flexible deployment
  • Easily set up powerful and robust security at a push of the QSS button
  • WDS wireless bridge provides seamless bridging to expand the wireless network
  • IP QoS ensures smooth video streaming or lag-free online gaming experience
  • Built-in NAT and DHCP servers support static IP address distribution
  • Supports PPPOE, Dynamic IP, Static IP, L2TP, PPTP, BigPond Cable Internet access
  • Supports Virtual Server, DMZ, UPnP, DDNS, Static Routing, VPN Pass-through
  • Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) authentication
  • Supports configuration backup/restore and firmware upgrades
  • Fully compatible with all IEEE 802.11 b/g/n products
  • Detachable antenna allows for stronger antenna upgrades (RP-SMA connector)

TP-Link TL-WR743ND Specifications

Interface
4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button
Quick Setup Security Button (WPS Compatible)
Reset Button
Power On/Off Button
External Power Supply
9VDC / 0.85A
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna
5dBi Detachable Omni Directional (RP-SMA)
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP
< 20dBm(EIRP)
Reception Sensitivity
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Modes
AP Client Router / AP Router Mode
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond
DHCP
Server, Client, DHCP Client List, Address Reservation
Quality of Service
WMM, Bandwidth Control
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
PPTP, L2TP, IPSec (ESP Head)
Access Control
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management
Access Control
Local Management
Remote Management
Certification
CE, FCC, RoHS
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Operating Temperature
0 Deg.C to 40 Deg.C (32 Deg.F to 104 Deg.F)
Storage Temperature
-40 Deg.C to 70 Deg.C (-40 Deg.F to 158 Deg.F)
Operating Humidity
10% to 90%, non condensation
Storage Humidity
5% to 90% non-condensing
Dimensions ( W x D x H )
6.9 x 4.4 x 1.2" (174 x 111x 30mm)
