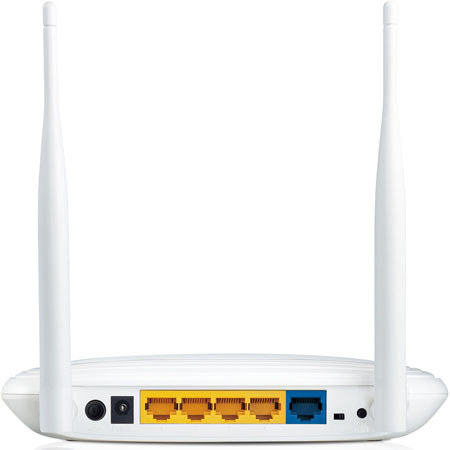

TP-Link TL-WR843ND 300Mbps Wireless AP/Client Router

See all TP-Link items
SKU: TPLWR843ND MFR: TL-WR843ND
TP-Link TL-WR843ND: Picture 1 thumbnail TP-Link TL-WR843ND: Picture 2 thumbnail

Our Price

$34.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About TP-Link TL-WR843ND

The TP-Link's TL-WR843ND Wireless AP/Client Router is specially designed for Wireless ISP users, enabling wireless access to the Internet in areas with no wired ISP infrastructure (such as cable or xDSL). With up to 300Mbps wireless speed, it is ideal for interruption sensitive applications like HD video streaming. TL-WR843ND can also serve as a normal wireless router, just like TL-WR841ND does. What's more, it supports Passive Power over Ethernet, convenient for deployment in areas without power outlets, such as a backyard or an attic.

TP-Link's TL-WR843ND is designed to be set in Client Router mode as its default wireless mode to support a WISP connection. When it works as a WISP client device to access the Internet, local computers can connect to TL-WR843ND via wireless or cables. With transmission rates up to 300Mbps, users can run bandwidth intensive devices including VoIP, HD streaming, or online gaming, without the lag. Using its powerful N technologies, the router is also able to mitigate data loss over long distances and through obstacles.

The TL-WR843ND is equipped with a RJ-45 WAN port, which is designed to support Passive PoE. For users that require a better WISP signal and need to place the device at location without power outlets, such as an attic or garage, the TL-WR843ND will fit the bill flawlessly with up to 30 meters Power over Ethernet capability. Users can easily have the most flexible deployment and don't have to be tethered to any outlets!

The TL-WR843ND features Wi-Fi Protected Setup (WPS) that allows users to almost instantly setup their security simply by pressing the "WPS" button automatically establishing a WPA2 secure connection, which is more security compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you don't need to remember a password.

TP-Link TL-WR843ND Features

  • 300Mbps wireless data transfer ideal for interruption sensitive applications like HD video streaming
  • Client Router Mode supports WISP Internet connection, allowing users to share an Internet connection wirelessly or via cables
  • WAN Port supports up to 30 meters (100 feet) Passive Power over Ethernet
  • Easily setup a WPA2 encrypted secure connection at a push of the WPS button
  • Provide hardware switch to change the device's operation mode easily
  • WDS wireless bridge provides seamless bridging to expand the wireless network
  • IP based Bandwidth Control allows administrators to determine how much bandwidth is allotted to each PC
  • Live Parental Controls allow parents or administrators to established restricted access policies for children or staff
  • IP and MAC binding effectively prevents ARP attacks

TP-Link TL-WR843ND Specifications

Interface
4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button
WPS/Reset Button
Operation Mode Switch
Power On/Off Button
External Power Supply
9VDC / 0.85A
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna
2 x 5dBi Detachable Omni Directional Antenna (RP-SMA)
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP
<20dBm(EIRP)
Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Modes
Client Router / Router
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128/152-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
WAN Type
Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
DHCP
Server, Client, DHCP Client List,
Address Reservation
Quality of Service
WMM, Bandwidth Control
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
PPTP, L2TP, IPSec (ESP Head)
Access Control
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management
Access Control
Local Management
Remote Management
Certification
CE, FCC, RoHS
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Operating Temperature
0deg.C-40deg.C (32deg.F-104deg.F)
Storage Temperature
-40deg.C-70deg.C (-40 deg.F-158deg.F)
Operating Humidity
10%-90% non-condensing
Storage Humidity
5%-90% non-condensing
Dimensions (WxDxH)
7.6x5.1x1.3" / 193.04x129.54x33.02mm
