Tascam

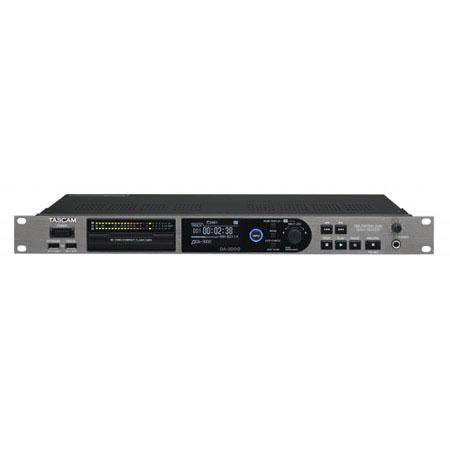

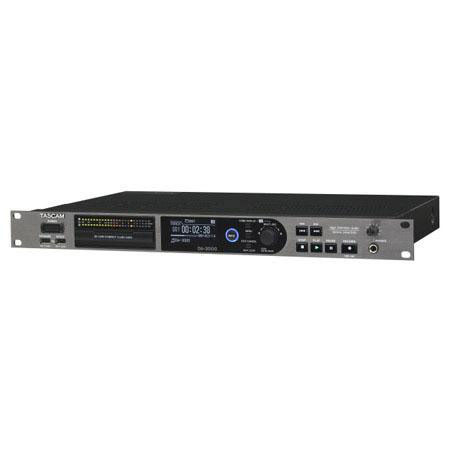

Tascam DA-3000 Stereo Master Recorder & ADDA Converter, Records 192kHz PCM/5.6MHz DSD, Dual Mono Circuitry, Stereo XLR & RCA Analog I/O

SKU: TSDA3000 MFR: DA-3000
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,249.99 List Price

Our Price

$999.99
Free Shipping
Qty:

Add to Wishlist In Stock

About the Tascam DA-3000

The Tascam DA-3000 Stereo Master Recorder & ADDA Converter is a 2-track analog to digital/digital to analog converter that can be used as a digital recorder, converter, or monitoring system for mastering, mixing and tracking applications. It records to SDHC or CF cards and has a USB port that allows you to transfer files to and from an external flash drive. The DA-3000 can record analog or digital signals as stereo PCM files in up to 192kHz and stereo DSD files in up to 5.6MHz.

The DA-3000 was built with dual-mono circuitry to reduce interference between channels to allow for more accurate audio capture. Both the left and right channels conversion is via their BurrBrown PCM1795 converter chip. The unit has a fanless design to reduce internal noise. Visual monitoring of your signals is provided via the front-panel 24-dot level meter.

The recorder provides a variety of input and output in both the analog and digital domain. Stereo XLR and RCA inputs and outputs allow you to connect to most analog sources, while S/PDIF, AES/EBU and SDIF-3 digital connections allow you to integrate a variety of digital sources. You can control the DA-3000 with the included remote control.

Tascam DA-3000 Includes

  • Tascam DA-3000 Stereo Master Recorder & ADDA Converter
  • 3P Power Cord
  • RC-10 Wired Remote Control for DR-40 & DR-100mkII
  • Coin Battery
  • Rackmount Screw Kit
  • Tascam 1 Year Parts & 90 Days Labor Warranty

Tascam DA-3000 Features

  • Stereo Recording at High Sampling Frequencies Up to 192kHz PCM and 5.6MHz DSD: The DA-3000 is perfectly designed for stereo PCM/DSD recordings at high sampling frequencies suitable for archival masters
  • Variety of Inputs and Outputs to Handle Diverse Recording Situations: The variety of inputs and outputs enable connection with all types of studio equipment, including audio interfaces and mic preamps. The analog inputs and outputs include both XLR and RCA jacks
  • Upgraded User Interface: With the goal of making a high-quality audio recorder and ADDA converter easy to use, designed the front panel with all of the necessary external controls and included long, brightly lit meters and display
  • Simultaneous Multitrack Recording and Playback with Multiple Cascaded Units: You can synchronize the operation of multiple DA-3000 units by interconnecting their digital inputs and outputs. Files that have been recorded in sync will have sample-level synchronization as well
  • Dual Mono Circuits Eliminate Interference Between Left and Right Channels: Use of a dual mono structure for the output circuit eliminates interference between the left and right channels and achieves high audio quality by maximizing the performance of the components
  • Low Noise with Fully-Balanced Circuitry and High-Quality AD Converters: The internal circuit uses a fully-balanced structure that is completely resistant to noise from the inputs and outputs. This has a great effect on the output and input stage impacting the recorded audio
  • Numerous High-Quality Parts Selected After Month of Evaluation Tests: Operational amplifiers have a great impact on audio quality. In addition, selected low-impedance capacitors featuring low resistance, low noise and high precision to emphasize audio quality
  • Power Supply Section and High-Precision TCXO Support High-Audio Quality: In order to assure high-quality audio input and output, a stable power supply is indispensable. The EI core transformer has separate coils one for the digital circuits and control panels & one for the analog circuits
  • Fanless Design Eliminates Unwanted Noise: Cooling fans inside equipment generate noise and can cause loss of accuracy when monitoring at low volume levels. With the DA-3000, achieved high performance in a fanless design, allowing you to maintain a comfortable monitoring environment

Tascam DA-3000 Specifications

Supported media: SD Supports 4GB to 32GB SDHC cards (Media ejection method: push-push)
Supported media: CF Supports 1GB to 64GB Type I CF cards
Supported media: USB Supports 2GB to 64GB USB flash drives
Recording and playback formats: PCM BWF(rec/play) / WAV(playback only), 44.1/48/88.2/96/176.4/192kHz,16/24bit
Recording and playback formats: DSD DSDIFF / DSF, 2.8224/5.6448MHz
Number of channels 2 mono(or 1 stereo)
Analog Input-Unbalanced: Connecter RCA pin jacks
Analog Input-Unbalanced: Std input level -10dBV
Analog Input-Unbalanced: Max input level +6dBV
Analog Input-Unbalanced: Min input level -22dBV
Analog Input-Unbalanced: Input impedance 22k ohms or greater
Analog Inputs-Balanced: Connecter XLR-3-31(1:GND,2:HOT,3:COLD)
Analog Inputs-Balanced: Std input level +4dBu
+6dBu(only when maximum input level is +15dBu)
Analog Inputs-Balanced: Max input level +15dBu,+18dBu,+20dBu,+22dBu,+24dBu(switchable in menu)
Analog Inputs-Balanced: Min input level -8dBu
-6dBu(only when maximum input level is +15dBu)
Analog Inputs-Balanced: Input impedance 10k ohms or greater
Analog Output-Unbalanced: Connector RCA pin jacks
Analog Output-Unbalanced: Std O/P level -10dBV
Analog Output-Unbalanced: Max O/P level +6dBV
Analog Output-Unbalanced: O/P impedance 200 ohms or less
Analog Output-Balanced: Connecter XLR-3-31(1:GND,2:HOT,3:COLD)
Analog Output-Balanced: Std O/P level +4dBu
+6dBu(only when maximum input level is +15dBu)
Analog Output-Balanced: Max O/P level +15dBu,+18dBu,+20dBu,+22dBu,+24dBu(switchable in menu)
Analog Output-Balanced: Output impedance 100 ohms or less
Digital Input: S/PDIF,CASCADE Unbalanced
Digital I/P-S/PDIF,CASCADE: Connecter RCA pin jacks
Digital I/P-S/PDIF,CASCADE: Format IEC60958-3(S/PDIF)
Digital I/P-S/PDIF,CASCADE: Impedance 75 ohms
Digital Input-S/PDIF,CASCADE: Input freq when SRC OFF: 44.1/48/88.2/96/176.4/192kHz
when SRC ON: when SRC ON
Digital I/PS/PDIF,CASCADE:Freq deviation +/-100ppm(when SRC OFF)
Digital I/P: AES/EBU BALANCED
Digital I/P-AES/EBU: Connecter XLR-3-31(1:GND,2:HOT,3:COLD)
Digital I/P-AES/EBU: Format AES3-2003/IEC60958-4(AES/EBU)
Digital I/P-AES/EBU: Input impedance 110 ohms
Digital I/P-AES/EBU: Input frequency when SRC OFF: 44.1/48/88.2/96/176.4/192kHz
when SRC ON: 32 - 216kHz
Digital I/P-AES/EBU: Frequency deviation +/-100ppm(when SRC OFF)
Digital I/P-SDIF-3 UNBALANCED
Digital I/P-SDIF-3: Connecter BNC Connecter x 2(L/R)
Digital I/P-SDIF-3: Format SONY SDIF-3/DSD-raw
Digital I/P-SDIF-3: Input impedance 75 ohms +/-20%
Digital I/P-SDIF-3: Clock synch freq 44.1kHz
Digital O/P: S/PDIF,CASCADE UNBALANCED
Digital O/P-S/PDIF,CASCADE: Connector RCA pin jacks
Digital O/P-S/PDIF,CASCADE: Format IEC60958-3(S/PDIF)
Digital O/P-S/PDIF,CASCADE: Impedance 75 ohms
Digital O/P-AES/EBU Balanced
Digital O/P-AES/EBU: Connecter XLR-3-31(1:GND,2:HOT,3:COLD)
Digital O/P-AES/EBU: Format AES3-2003/IEC60958-4(AES/EBU)
Digital O/P-AES/EBU: Output impedance 110 ohms
Digital O/P-SDIF-3: Connecter BNC Connecter x 2(L/R)
Digital O/P-SDIF-3: Format SONY SDIF-3/DSD-raw
Digital O/P-SDIF-3: Output impedance 10 ohms +/-20%
Digital O/P-SDIF-3: Clock synch freq 44.1kHz
WORD SYNC IN: Connecter BNC Connecter
WORD SYNC IN: Input level 5V TTL equivalent
WORD SYNC IN: Input impedance 75 ohms +/-10%
WORD SYNC IN: Input frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
WORD SYNC IN: Allowable freq deviation +/-100ppm
WORD SYNC THRU/OUT: Connecter BNC Connecter
WORD SYNC THRU/OUT: Output level 5V TTL equivalent
WORD SYNC THRU/OUT: Output impedance 75 ohms +/-10%
WORD SYNC THRU/OUT: Output frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
WORD SYNC THRU/OUT: Frequency stability +/-1ppm or less(Ta=25deg.C)
Device: Connecter 4-pin USB A-type
Device: Protocol USB 2.0 HIGH SPEED(480Mbps)
Device: Power rating DC 5.0V 0.5A
Keyboard: Connecter 4-pin USB A-type
Keyboard: Protocol USB 1.1 FULL SPEED(12Mbps)
Keyboard: Power rating DC 5.0V 0.2A
Infrared receiver TASCAM RC-10 wireless remote controller
Phone: Connecter Standard 6.3mm (1/4') stereo jack
Phone: Maximum output 45mW + 45mW (into 32 ohms load, 0.1% distortion)
Power AC120V, 60Hz(US/Canada Version)
AC220-240V, 50-60Hz(UK/EUR/Australia Version)
Power consumption 24W
Operating temperature range 0 - +40deg.C
Recording: Frequency response PCM: 20 - 20kHz +0.1dB/-0.5dB (Fs=44.1k/48kHz,JEITA)
20 - 40kHz +0.1dB/-1dB (Fs=88.2k/96kHz,JEITA)
20 - 80kHz +0.1dB/-6dB (Fs=176.4k/192kHz,JEITA)
DSD: 20 - 50kHz +0.1dB/-3dB (DSD,JEITA)
20 - 100kHz +0.1dB/-12dB (DSD,JEITA)
Recording: Distortion (THD+N, 1kHz) 0.003% or less (Ref:-16dB/BALANCED,JEITA)
0.005% or less (UNBALANCED,JEITA)
Recording: S/N ratio PCM(24bit mode): 113dB or higher (Ref:-20dB/BALANCED,JEITA)
111dB or higher (UNBALANCED,JEITA)
DSD: 106dB or higher (Ref:-20dB/BALANCED,AES-17 20k LPF)
104dB or higher (UNBALANCED,AES-17 20k LPF)
Recording: Crosstalk(1kHz) 108dB or higher (JEITA)
Playback: PCM 20 - 20kHz +/-0.1dB (Fs=44.1k/48kHz,JEITA)
20 - 40kHz +0.1dB/-0.3dB (Fs=88.2k/96kHz,JEITA)
20 - 80kHz +0.1dB/-3dB (Fs=176.4k/192kHz,JEITA)
Playback: DSD 20 - 50kHz +0.1dB/-3dB (DSD,JEITA)
20 - 100kHz +0.1dB/-12dB (DSD,JEITA)
Playback: Distortion (THD+N, 1kHz) 0.003% or less (Ref:-16dB/BALANCED,JEITA)
0.001% or less (UNBALANCED,JEITA)
Playback: S/N ratio PCM: 118dB or higher (Ref:-20dB/BALANCED,JEITA)
116dB or higher (UNBALANCED,JEITA)
DSD: 116dB or higher (Ref:-20dB/BALANCED,AES-17 20k LPF)
114dB or higher (UNBALANCED,AES-17 20k LPF)
Dimensions (W x H x D) 483 x 45 x 305mm / 19.02 x 1.77 x 12.0"
Weight 4.2kg / 9.25lbs
