Tascam

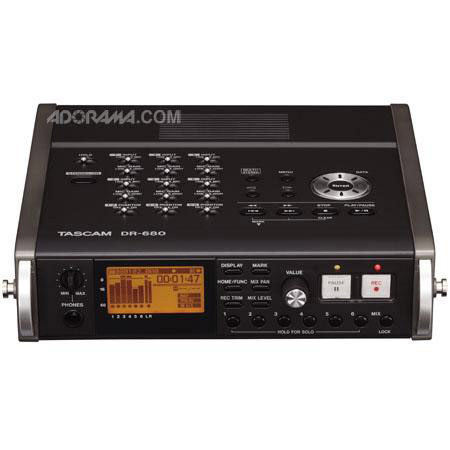

Tascam DR-680 8-Track Portable Field Audio Recorder, Up to 24-bit/96kHz, Stereo Recording up to 24-bit/192kHz

SKU: TSDR680 MFR: DR-680
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,399.99 List Price

Our Price

$499.95
Free Shipping
Qty:

Add to Wishlist In Stock

About the Tascam DR-680

Tascam's DR-680 brings multi-channel portable recording within reach of any musician for polished live, location and surround recordings. Up to eight tracks can be recorded to solid-state SD card media at 96kHz/24-bit Broadcast WAV quality. Six mic inputs provide phantom power and 60dB of gain for great-sounding recordings with your condenser microphones. Record the six microphones along with a digital S/PDIF source for 8 track recording. Each mic input has a selectable low cut filter and analog limiter for optimal sound.

Inputs can be monitored using a built-in mixer with level and pan controls for each input. The stereo mixdown can even be recorded along with the six mics for quick stereo playback of the event. There's even a built-in speaker to check recordings without headphones.

In addition to WAV recording up to 96kHz, the DR-680 captures stereo audio at 192kHz/24-bit for audiophile-quality masters. The DR-680 records up to four channels of MP3 audio for web-ready recordings. Two of the recorders can be connected with a cascade cable for up to 14-track recording on battery power. Multi-channel portable recording has never been as simple or affordable as the TASCAM DR-680.

Tascam DR-680 Includes

  • Tascam DR-680 8-Track Portable Field Audio Recorder
  • Power Supply
  • Shoulder Strap
  • Tascam 1 Year Warranty

Tascam DR-680 Features

  • 8-track portable recording
  • Record eight individual inputs or six inputs plus a stereo mixdown
  • Up to 96kHz/24-bit Broadcast WAV file resolution for 8 channels
  • Stereo 192kHz/24-bit recording mode
  • 4-channel MP3 recording
  • Digital monitor mixing (level and pan) with recordable stereo mixdown
  • Ideal for surround music and effects recording
  • Cascade function for running two units together
  • Pre-recording feature
  • Auto-recording mode begins recording when the input reaches a certain level
  • Mark function during recording/playback
  • Edit functions such as divide and delete
  • 128x64 backlit LCD display
  • Powered through (8x) AA batteries or (included) PS-1225L adapter
  • Records to SD/SDHC card media (not included)
  • Premium AKM Audio4Pro 192kHz A/D converters with over 100dB signal to noise ratio

Tascam DR-680 Specifications

Recording/Reading Methods SD/SDHC Cards
Recording Bit Rate Up to 24-bit
Sampling Frequency Up to 96kHz (8 Tracks)
Up to 192kHz (2 Tracks)
Number of Channels 8
Connectors 4 x XLR/TRS Mic/Line Inputs
2 x 1/4" Mic/Line Inputs
6 x RCA Unbalanced Outputs
1 x S/PDIF Digital Input
1 x S/PDIF Digital Output
1 x USB 2.0 Port
1 x 1/4" Headphone Output
1 x Cascade Connector
Speakers Integrated
Display 128 x 64 Backlit LCD
Power 8 x AA Batteries
AC Power
Dimensions (W x H x D) 7.95 x 2.12 x 6.93" (202 x 54 x 176mm)
Weight 2.65 lbs (1.2kg) (Without Batteries)
