T-Rex Engineering Dr-Swamp Dual Channel Distortion Pedal, 453K Ohm Input Impedance, 9V DC Power Supply

T-Rex Engineering
T-Rex Engineering : Picture 1 thumbnail T-Rex Engineering : Picture 2 thumbnail T-Rex Engineering : Picture 3 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About T-Rex Engineering

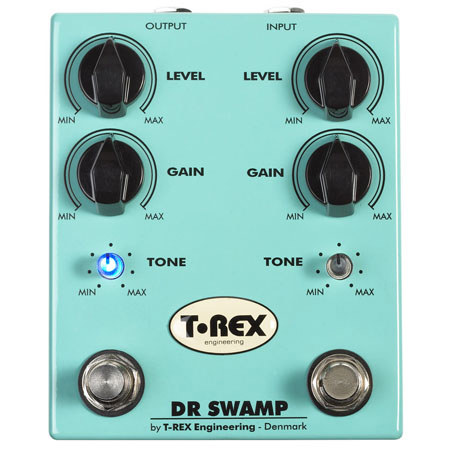

The T-Rex Distortion with two Dr Swamps in a single pedal, you can toggle between your favorite Dr Swamp settings to deliver two brands of sweet T-Rex distortion without tweaking any knobs. Start out with a great chunky rhythm sound warm and bassy, but with a nice crisp edge. Then, when it's solo time, kick your Dr Swamp in to high gear to deliver a gorgeous, searing lead sound that'll take your playing to new heights. If you like a cleaner rhythm sound, then reserve the two channels of your Dr Swamp for two different lead settings a more restrained classic blues sound, for example and a High Voltage rock-and-roll scream.

No matter how you choose to set it up, the new Dr Swamp twin distortion will always give you more. T-Rex tone Dr Swamp gives you twice the distortion and twice the legendary T-Rex tone.

T-Rex Engineering Features

  • The Gain A knob controls the amount of distortion, when using switch A
  • The Gain B knob controls the amount of distortion, when using switch B
  • The Tone knob affects the top end (edge) of your signal without compromising sonic quality, allowing you to dial in the perfect tonal flavor for you taste
  • The Level knob sets the overall volume. In mid-position (twelve o'clock) the volume level is 1:1. When turned full over (clockwise) the input signal is boosted 15dB

T-Rex Engineering Specifications

Input Impedance @ 1KHz
Output Impedance@1KHz
Power supply
9V DC (Power tool 9)
Minimum Power supply Voltage
Maximum Power supply Voltage
12.5V DC
Current Draw @ 9V DC
Maximum input signal Vp/p
Battery Type
9V battery 6F22
Battery Life
6 to 9 Hour
External connectors
Input Jack, Output Jack and 9V DC Jack
On/Off, Level, Gain Tone
Dimensions (D x W x H)
120 x 100 x 55mm / 4.7 x 3.9 x 2.2 inch
0.497Kg / 17.53 oz
