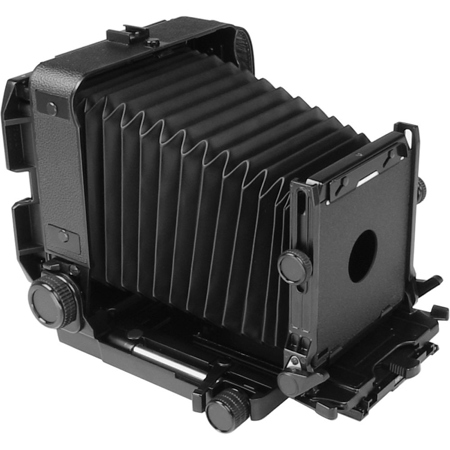

Toyo Field 45AX Pro Field Camera
Mfr. Part: 180-223 SKU: TY45AX
enlarge image
|
|
 |
|
|
|
Item Includes
interchangeable 1/4" and 3/8" tripod sockets, one pair of adjustable infinity stops
|
Description
The 45AX camera body is identical to the classic Toyo Field 45AII, and is equipped with a standard, reversible 4x5 Graflok back in place of the 45AII's deluxe revolving back, to economize on weight and cost. Weighing less than 6 lbs., the Toyo Field 45AX offers all metal construction, full featured movements, and portable, light weight, yet rugged design that are the hallmarks of Toyo Field cameras. For the professional and serious enthusiast, the 45AX represents the best value in a versatile and compact technical 4x5 field camera.
The 45AX camera body is identical to the classic Toyo Field 45AII, and is equipped with a standard, reversible 4x5 Graflock back in place of the 45AII's deluxe revolving back, to economize on weight and cost. Weighing less than 6 lbs., the Toyo Field 45AX offers all metal construction, full featured movements, and portable, light weight, yet rugged design that are the hallmarks of Toyo Field cameras. For the professional and serious enthusiast, the 45AX represents the best value in a versatile and compact technical 4x5 field camera.
In addition, the 45AX reversible back can be interchanged with any Toyo deluxe revolving back for added convenience at any time. For bright viewing, ease of composition, and accurate focusing, the 45AX reversible back comes equipped with Toyo's own acid-etched ground glass. It reveals translucent centimeter grid lines and discreet reference markings for 6x7cm and 6x9cm roll film formats. This permits critical composition and freedom from distracting black lines common on most 4x5 screens. The grids and markings even simplify composition with creative 6x12cm panoramic format. The 45AX reversible back also includes a precision factory-installed Toyo Super-Brite Fresnel Lens in front of the ground glass.
The 45AX offers creative image control ideal for field use, as well as many studio applications. The front standard offers rise, swing, tilt and shift. The rear offers tilt and swing. With these controls, correction of distortion, adjustment of depth of field, and manipulation of selective focus are all possible.
The Toyo Field 45AX features versatile tapered normal/wide angle bellows, drop bed and double extension construction for use with lenses from 47mm superwide to 360mm telephoto, and optional extension backs for macro and longer lenses. |
Features
 |
Compact Folding Design |
|
Rugged, precision all-metal alloy construction |
|
4x5 Reversible Graflock Back |
|
Rack and pinion, geared, fine-focus front bed |
|
Rigid double extension bed for stable mounting of long lenses |
|
Drop bed capability with 90° and 15° positive stops for use of lenses to 45mm |
|
321mm extension allows focusing of 300mm or 360mmT lens |
|
Built-in accessory shoe |
|
Includes one pair of adjustable infinity stops |
|
Includes interchangeable 1/4" and 3/8" tripod sockets |
|
Accepts many Toyo 4x5 system accessories |
|
International standard with Graflock fitting |
|
Accepts all 4x5 cut film holders, Kodak Readyload, Polaroid 4x5, and all roll film holders 6x7cm, 6x9cm, 6x12cm with Graflock fitting |
|
Toyo acid-etched, centimeter grid ground glass |
|
Factory-installed Toyo Super-Brite Fresnel Lens |
|
Full corner-to-corner coverage for critical focusing |
|
Toyo Flexilast material resists cracking for long life |
|
Tapered Bellows allows use of lenses from wide angle to telephoto with no need to change to wide angle bellows |
Specifications
| Type | technical field camera |
| Format | 4x5
6x7cm, 6x9cm, 6x12cm with Graflock fitting |
| Focusing | micro-fine rack and pinion focusing front bed 91.5mm |
| Camera Movements | - |
| Drop bed | with 90° and 15° positive stops for use of lenses to 45mm |
| Rise | Front 20.5mm / 23.5mm |
| Swing | 8° + 8° |
| Tilt | 90° + 15° |
| Lateral shift | Shift Front 7mm + 7mm
Shift Bed Front 40mm + 40mm (1) |
| Back swing | 8° + 8° |
| Back tilt | 90° + 15° |
| Camera back | 4x5 Vertical/Horizontal quick-change International Standard Graflok back |
| Track extention | Minimum Extension 45mm with recessed lens board
70mm with flat lens board
Maximum Extension 321mm with flat lens board
421 with addition of optional 100mm Extension Back |
| Bellows | Tapered Bellows |
| Bellows extention | 321mm extension allows focusing of 300mm or 360mmT lens |
| Tripod socket | interchangeable 1/4" and 3/8" tripod sockets |
| Lens panel | Toyo 110 x 110mm flat or recessed boards, or misc lensboard adapters |
| Dimentions | 4.2 x 7.4 x 8.2" folded |
| Weight | 5.8 lbs. |
| | |
|
|
|
|
|
|
|
|
|
|
