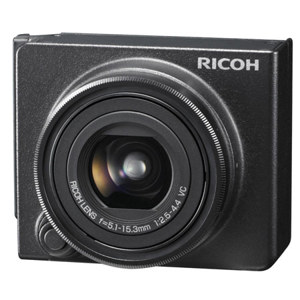

RICOH LENS S10 24-72mm has a 3.0x optical zoom lens So it can be a wide-angle lens convenient for both expansive landscapes and narrow indoor spaces
Excellent correction of various types of aberrations.Sharp optical performance at all focal lengths
Using special low-dispersion glass and other techniques, we have achieved compact size while suppressing image distortion and color fringing near the edge, even at 24 mm wide-angle. High-resolution and contrast are achieved at all focal lengths.
Superior optical performance to the edge of the image is insured before the image is delivered to the photographer.
Capture subject detail from 1 cm point-blank range. Close-up photography
RICOH LENS S10 24-72 mm can do close-up photography with a minimum shooting distance of 1 cm (wide-angle; distance from front of lens). In addition, with zoom macro, which provides greater magnification than standard macro, it is possible to fill the frame with a 17×132 mm subject or a 4.3×3.2 mm subject if digital zoom is also used.
High-sensitivity CCD achieves natural and high image quality
RICOH LENS S10 24-72 mm will be used as the photographer's "everyday" zoom lens. So it utilizes a 1/1.7-inch high-sensitivity image sensor to achieve both high-level image quality and superior portability. Featuring both high-sensitivity and low-noise characteristics, this CCD can handle the wide sensitivity setting range of ISO100 to 3200. Even in high-sensitivity photography, it is possible to obtain natural-looking images with tonal gradations.
Distinct images without blurring. Camera shake correction and high-sensitivity setting
RICOH LENS S10 24-72 mm uses the CCD-shift method of camera shake correction. It is effective for preventing the camera shake that can occur in various situations
In addition, blurring from both camera shake and subject movement can be suppressed using the high-sensitivity shooting capability of up to ISO3200.
Greater flexibility and power of expression. Extensive selection of lens accessories
An easy to attach bayonet-type self-retaining lens cap (LC-2) is available. It is effective for protecting the lens and preventing lens cap loss.
There is also a 21 mm wide conversion lens (DW-6) with a wide angle of view and a teleconversion lens (TC-1) that can shoot 135 mm telephoto.
Conversion lenses are mounted using the hood & adapter (HA-3). When HA-3 is attached, filters (43 mm diameter, general purpose) can be used.
• VGA movies (640×480), a convenient size for use on personal computers
• Aspect ratio setting allows selection of 16:9, 4:3, 3:2, or 1:1.
Playback zoom (maximum 16x) makes it easy to check focus.
• Continuous shooting at approx. 30frames/second (picture quality: 640×480).
• Shooting capacity with GXR body attached: approx. 410 images
|Effective Pixels||Approximately 10.0 million|
|Image Sensor||1/1.7" CCD (total pixels: approx. 10.4 million)|
|Focal Length||5.1mm - 15.3mm (35 mm format equivalent: 24-72 mm)|
|Aperture||f/2.5 - f/4.4 (T) (wide-open f value)|
|Focus Range||(from the front of the lens): Normal shooting: Approx. 30 cm to infinity:
Macro shooting: Approx. 1 cm to infinity (wide angle); Approx. 4 cm to infinity (telephoto); approx. 1 cm to infinity?zoom macro)
|Construction||Construction: 11 elements in 7 groups (4 aspherical lens elements with 4 surfaces)|
|Digital Zoom||4.0 × digital zoom; approx. 5.7 × auto resize zoom (VGA)|
|Focus Mode||CCD-based multi and spot AF; MF; Snap; infinity (focus lock and AF-assist)|
|Camera shake correction function:||Image sensor shift method image stabilizer|
|Shutter Speeds||Photographs: 180 - 1/2000 s (upper and lower limits vary according to shooting and flash mode)
Movies: 1/30 - 1/2000 s
|Exposure Control: Metering||TTL-CCD metering in multi (256-segment), center-weighted, and spot modes with autoexposure lock|
|Exposure Control: Mode||Program AE, aperture priority AE, manual exposure, shutter priority AE, move target function|
|Exposure Compensation||Manual (+4.0 to -4.0 EV in increments 1/3 EV or 1/2 EV),
auto bracketing (-2 EV to +2 EV in increments 1/3 EV or 1/2 EV)
|ISO sensitivity||Auto, Auto-Hi, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200|
|White Balance||Auto / Multi-P AUTO / Outdoors / Cloudy / Incandescent Lamp / Fluorescent Lamp /Manual Settings / Detail; white balance Bracketing|
|Flash||Range (built-in flash): Approx. 20 cm - 4.5 m (wide-angle), Approx. 15 cm - 2.7 m (telephoto)|
|Shooting Mode||Auto / program shift / aperture priority / shutter priority / manual /scene (movie, portrait, sports, landscape, nightscape, skew correction, zoom macro) / "My Settings"|
|Continuous Mode||Number of pictures shot in Continuous (Picture Size: RAW); Noise Reduction off: 5 pictures (under ISO800), 4 pictures (ISO800 and higher); Noise Reduction on (Weak or Strong): 4 pictures (1 set): HI (1280 × 854): 30 pictures (24 Frames/SeNumber of pictures shot in M-Cont Plus (1 set)?HI (640 × 480) : 30 pictures (30 Frames/Sec), LO (3648 × 2736) : 15 pictures (1.6 Frames/Sec)|
|Picture Quality||FINE, NORMAL, RAW (DNG)|
|Image Size (Pixels)||Photographs:
16:9 - 3648×2048, 3264×1840
4:3 - 3648×2736 , 3264×2448, 2592×1944, 2048×1536, 1280×960, 640×480
3:2 - 3648×2432, 3648×2176
1:1 - 2736×2736, 2448×2448
Movies (30 Frames/Sec): 640 x 480, 240 x 240
|Battery Life||Based on CIPA standard DB-90: approx. 410 shots )|
|Dimensions (W × H × D)||Camera unit only: 2.70" x 2.25" x 1.50" / 68.7 mm × 57.9 mm × 38.6 mm (including the lens barrel; Excluding the connector)
When mounted on the camera body 4.49" x 2.75" x 1.75" / 113.9 mm × 70.2 mm × 44.4 mm (including the lens barrel)
|Weight||Camera unit only: 5.7 oz / 161 g (not including the lens cap or Connector cap)
When mounted on the camera body: 11.5 oz / 325 g (not including the Battery, memory card, neck strap, connector cap, or lens cap)
|Operating Enviroment||Operating temperature: 0 °C to 40 °C
Operating humidity: 85% or less
Storage temperature: -20 °C to 60 °C
