Iogear Miniview Ultra KVM Switch - 8 Port PS/2 KVM Switch 1U Rackmount without Cables

SKU: US 518315
Original Packaging
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$112.50 $5 per week
Add to Wishlist In Stock

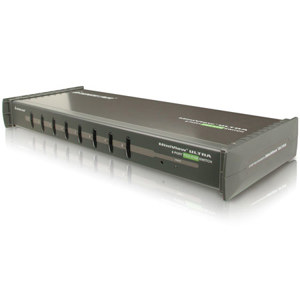

Iogear Miniview Ultra KVM Switch - 8 Port PS/2 ...: Picture 1 regular
image does not represent actual item

About this item

Iogear's eight-port MiniView Ultra is just the tool you need to help reduce the need for redundant hardware. Eight monitors, mice and keyboards are simply too expensive, bulky and downright inconvenient for most system administrators. Why bother when you can control all eight, or even up to 512 computers with a single keyboard, monitor and mouse.

But the MiniView Ultra is much more than a simple 8-port KVM switch. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while the On Screen Display technology allows you to assign a unique name to each computer and access it via a slick, menu-driven interface. With its 1U, 19" rack-mountable casing and status-monitoring LEDs, the MiniView Ultra is the perfect switch for your server room or any other multi-computer environment.

Key Features

  • Use one keyboard, monitor and mouse to control 8 computers
  • Control up to 512 computers by connecting multiple GCS138s together
  • On Screen Display provides a convenient method for accessing the computers
  • Connected computers can be added or removed from the setup without disturbing the other computers
  • Keyboard/mouse translation allows PS/2 peripherals to control both PS/2 and serial-based computers
  • Plug-n-Play monitor support. High-resolution video support (up to 1920 x 1440)
  • Easy to install - no software required
  • Built in AutoScan mode
  • LEDs allow for easy status monitoring

Technical Specs

CPU Connectors Mouse: 8x6 pin mini-DIN Female (PS/2)
Keyboard: 8x6 pin mini-DIN Female (PS/2)
Monitor: 8xHDDB15 Male
Console Connectors Mouse: 1x6 pin mini-DIN Female (PS/2)
Keyboard: 1x6 pin mini-DIN Female (PS/2)
Monitor: 1xHDDB15 Female
Video Resolution 1920x1440; DDC2B
Scan Interval 3, 5, 10, 15, 20, 30, 40, 60 seconds
Port Selection Push button, hot keys or OSD
Emulation Keyboard: PS/2, AT
Mouse: PS/2, Serial
Computer Connections Direct: 8
Daisy Chain or Cascading: 512
Enclosure Metal
LEDs: Power On 1
LEDs: Selected 8
LEDs: On Line 8
System Requirements Computers with PS/2 or serial mouse connections, PS/2 or AT keyboard connections and HDDB15 VGA connection
Additional serial to PS/2 adapter require
Additional AT to PS/2 adapter required
Voltage DC 9V
Amps 3 00 mA (Max)
Power Consumption 400 mA (Max)
Dimensions (W x H x D) 17 x 1.75 x 6" / 43.18 x 4.45 x 15.24 cm
Weight 7.8 lbs / 3.51 kg
