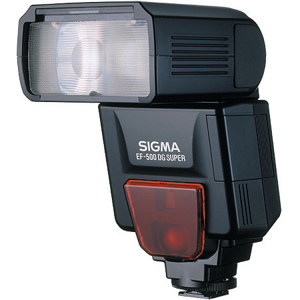

Electronic Flash EF-500 DG SUPER is designed to work with both AF 35mm SLR and Digital SLR cameras of popular manufacturers, for advanced flash photography. It has a maximum guide number of 165 in feet or 50 in meter at 105mm focal length (ISO 100).
The projection angle of the flashlight is set automatically to match the lens' focal length ranging from 28mm wide-angle to 105mm medium-telephoto. It also incorporates a built-in diffuser that expands the angle of illumination down to that of 17mm lens.
It enables full automatic flash photography by TTL automatic flash exposure control. It includes S-TTL flash photography for Sigma, 3-D multi-sensor balanced fill flash function and D-TTL flash photography for Nikon, E-TTL flash photography for Canon, ADI flash photography and P-TTL flash photography for Minolta.
For bounce flash it can be tilted 90° upwards and 7° downward for close-ups. Also it can be swiveled 180° to the left and 90° to the right. It incorporates "modeling flash" mode to provide proper light distribution to check the shadow of the subject.
The multi pulse flash features enable reduced power setting from 1/4 to 1/128 in 6 steps and the pulse frequency of the flash can be set from 1Hz to 199Hz. EF-500 DG SUPER incorporates wireless TTL flash photography, slave flash photography, and FP flash photography (synchronized with high shutter speeds).
In addition, manual flash also can be set at 8 output power levels. The covering focal length of the flashlight can be seen on the LCD panel, and a flash ready signal can be seen in the viewfinder. The EF-500 DG SUPER also incorporates auto power off system.
|Guide Number||165 in feet / 50 in meters 105mm (ISO 100)|
|Zoom Range||Automatically set to match the lens between 28mm - 105mm.
17mm wide angle w/ built-in diffuser
|Bounce Capability||Up 60, 75, 90
|Swivel Capability||Right 60, 75, 90
Left 60, 75, 90, 120, 150, 180
|Recycle Time||Approx. 6 seconds (when using alkaline batteries)
Approx 4seconds (when using NiMH batteries)
|Power Source||4x AA Alkaline or 4x NiMH batteries|
|Dimensions (W x H x D)||3.0 X 5.5 X 4.6 inches / 77x139x117mm|
|Weight||11.83 oz. (325g)|
