| Camera Specs |
---- |
| Camera Type |

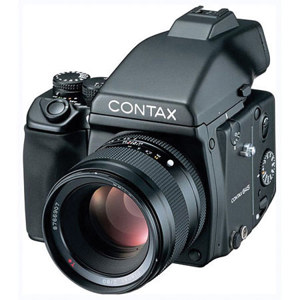

Medium Format SLR (Single Lens Reflex) Camera |
| Format |
4.5 x 6 cm format |
| Lens Mount |
Exclusive Contax 645 mount |
| Viewfinder |
AE Prism Finder (with Long Point) shows 95% of image format, magnification 0.8x (with 80mm standard lens/-1 diopter), with integrated diopter correction (+1 to -2D) and eyepiece shutter. Optional Waist Level Finder is also available
Viewfinder Information Shutter Speed, Aperture, Flash Ready, Metering Mode, Frame Counter, A.B.C. and Exposure Compensation, Self-Timer countdown, end of film indicator, Exposure adjustment/metering control (analog scale), Focus Display, Battery Check |
| Focus Modes |
S-Single Autofocus with Focus Lock and C-Continuous Autofocus |
| Focus Type |
TTL phase difference detection, viewfinder information via a focus indicator. |
| Focus Screen |
Standard full Matte Screen, optional accessory focusing screens are also available |
| Exposure Compensation |
Manual +/-2 EV (in 1/3 steps) |
| Exposure Metering |
Average Center-Weighted and Spot Metering, AE lock/EV lock
Average EV 1-21, Spot EV 3-18 |
| Exposure Bracketing |
Automatic Bracketing Control (A.B.C.) +/- 0.5EV or +/- 1.0EV. A.B.C. can be done in Single or Continuous exposure mode |
| Shutter /Release |
Electronically controlled focal plane shutter, auto 32-1/4000 second, manual 8-1/4000 second, B plus special mechanical B setting. special mechanical B setting
Electromagnetic, connection for cable release |
| ISO Range |
6-6400 manual setting, also equipped with Barcode Reading device for automatic ISO setting |
| Flash sync |
Syncs at all speeds up to 1/125 sec; PC terminal on camera body (For external electronic flash connection ONLY); Hot shoe (on top of AE Prism Finder) or flash connection via cable (standard PC or Contax TLA socket); Automatic shutter speed setting when flash charging is completed on dedicated flash units; Second curtain sync possible in combination with dedicated Contax flash TLA360 |
| Film Transport |
Automatic transport to frame number 1, single or continuous advance (max 1.6 frames per second possible) |
| Camera Back |
Standard insert for 120/220 Film, vacuum film insert for 220 film is also available |
| Tripod Socket |
1/4" x 20 |
| Self Timer |
2 or 10 second delay with blinking LED signal, may be canceled during countdown |
| PC Terminal |
Yes |
| Depth Of Field Preview |
Yes w/ button under shutter release |
| Mirror Lock Up |
Yes |
| Multiple Exposure |
Unlimited, via Multiple Exposure Lever |
| Power Source |
One six volt 2CR5 Lithium Battery |
| Dimensions |
141 x 99 x 73mm (5.55 x 3.90 x 2.87") Body only; 141 x 138.5 x 145.5mm (5.55 x 5.45 x 5.73") camera with AE Prism Finder, Film back holder and 120/220 insert (W x H x D) |
| Weight |
22 ounces (without battery) |
| Lens Specs |
---- |
| Construction |
5 Groups/ 6 Elements |
| Angle of view |
47° |
| F stop range |
f/2-22 |
| Closest Focusing Distance |
0.7m (27.5 inches) |
| Filter Size |
72mm |
| Dimensions (Length x Diameter) |
67 x 81mm (2.6 x 3.2") |
| Weight |
480g (17 oz.) |
| Notes |
Shutter: Focal-plane shutter in camera body - 8 seconds to 1/4000th in manual, 32 seconds to 1/4000th in Auto and Bulb |
