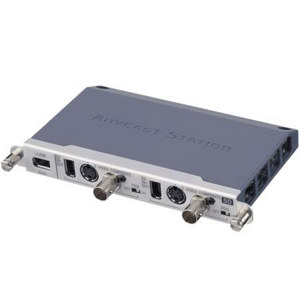

The Sony BKAW-570 is a standard definition board for the Anycast Station Live Content Producer. This all-in-one unit comprises a high-quality video switcher, an audio mixer, a large LCD display and a streaming encoder and server. This board is a standard input interface on the Anycast; an extra board allows more Composite, Y/C and IEEE-1394 ilink inputs.
|Interface||Board Connection, specific match for AWS-G500
Composite Video x2, 1 Vpp @ 75 ohms, on BNC Connectors
Y/C S-Video x2, Y @ 1 Vpp, 75 ohms, on 4-Pin connectors
IEEE-1394 x2, ilink DV A/V or HDD, on 6-Pin Connectors
|Warranty||Sony 1 year parts & 90 day labor warranty|
