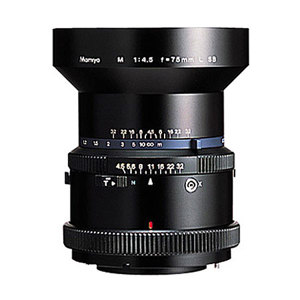

This short barrel lens allows for continuous focusing from infinity to close-up when attached to the Tilt/Shift Adapter. The 75mm f/4.5 SB is optically identical to the RZ 75mm f/4.5 Shift. It covers a wide image area and allows full use of the Tilt/Shift Adapter's capabilities.
The 75mm f/4.5 SB may be used on the RZ camera without the Tilt/Shift Adapter. To use like a standard 75mm lens the 27.2mm Spacer must be attached.
Applications include precise perspective control for architectural, industrial rendering, selective focus and table top photography.
|Construction||9 Groups/ 11 Elements|
|Angle of view||62°|
|F stop range||f/4.5-32|
|Closest Focusing Distance||1' 4.5" / 0.42m|
|Dimensions (Length x Diameter)||5.0 x 4.25" / 124.5 x 108mm|
|Weight||2.9 lbs. / 1,295 g.|
