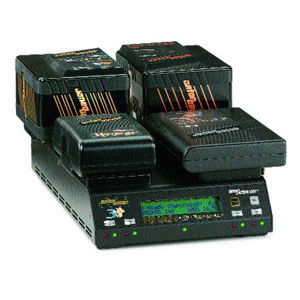

Quad 2702 The four position QUAD PowerCharger is the most advanced power system ever available. PowerCharger provides all of the advanced charging techniques of the Anton/Bauer InterActive 2000 system in a lightweight package the size of a notebook computer.
Six simultaneously operating charge terminations - TCO, -?V, temperature compensated VCO, DT/dt, CCO and FUL- (versus one for conventional chargers) deliver the unmatched battery performance and reliability.
Because allprogramming is contained on a single field replaceable chip, PowerCharger ensures future compatibility to new cell technologies and charging methods.
The Quad PowerCharger will sequentially charge any combination of Anton/Bauer Gold Mount batteries. QUAD PowerChargers have an integral recessed carry handle to easily transport batteries and charger to and from location.
The 70 watt QUAD 2702 features a multi-function LCD, wide range mains input (90-250VAC 50/60Hz) serial output port, a built in 2 amp DDM Diagnostic/Discharge Module and a high power 70 watt camera supply output which will power virtually all field equipment from AC mains, making it an all purposepower and battery analyzer system. 3 year MAXX Guarantee
QUAD 2702 PowerCharger includes DDM and 70 watt supply.
The InterActive 2000 system includes a complete family of high performance charger products from the full featured PowerChargers to the economical performance of the new TITAN series. All InterActive chargers communicate with Anton/Bauer InterActive batteries to provide safe, reliable performance from thebattery system. Batteries are charged quickly, safely and reliably. Service life is extended. And old myths of "memory" are totally eliminated.
The InterActive 2000 PowerChargers deliver all the advancements and proven reliability of InterActive charging plus the ability to power a camera from AC mains. The unprecedented value and unique features of the PowerCharger system has redefined the standard of power for all video operations - from individual videographers to the largest broadcast operation. All PowerChargers feature the Three year MAXX Guarantee.
The Quad 2702 and Dual 2722 standard features are: a Multifunction LCD which indicates charge status, available capacity, battery type/rating, and with Digital Batteries, percent of maximum charge, battery serial number, date of manufacture, number of charge/discharge cycles accumulated, present battery temperature and voltage.
Also displays capacity test data via the standard diagnostic discharge module. DC output for camera operation from AC mains in both models.
|Power Supply||70 Watt from single 4-Pin XLR|
|Connections/Interface||Gold Mount Type x 4|
|Power Requirements||90-250 Volts AC|
|Dimensions (WxHxD)||8 x 12.5 x 2.75 inches / 203 x 317 x 70mm|
|Weight||4.1 lbs. / 1.8kg|
|Warranty||Manufacturers 3 Year MAXX Warranty|
