AJA Video
Used

AJA D4E SDI to Composite or S-Video Transcoder

SKU: US 566979
Power Supply, Software, Original Packaging.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$95.00
Add to Wishlist In Stock

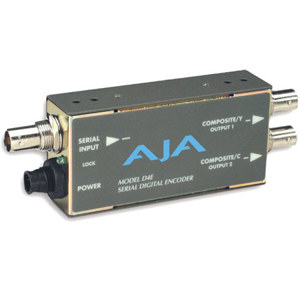

AJA Video D4E: Picture 1 regular
image does not represent actual item

About the AJA Video D4E

The AJA D4E SDI Encoder provides all-digital conversion of SDI to analog NTSC or PAL. The D4E is useful for monitoring, level and phase checking, dubbing etc. The D4E automatically adapts to NTSC or PAL video standards and outputs analog NTSC (525 line inputs) or PAL (625 line inputs). Pedestal and narrow/wide H/V blanking are user configurable via dip-switches. The D4E encodes the full dynamic range of input video. Levels below black and above white are not clipped.

AJA Video D4E Features

  • 1 SDI Input, 2 Composite/YC Analog Outputs
  • Automatic NTSC/PAL Selection
  • Built-In Test Pattern
  • Ultra Miniature Size

AJA Video D4E Specifications

Inputs SDI (SMPTE 259M), 1x BNC
Outputs NTSC, PAL, 2x BNC
Or NTSC/PAL YC (S-Video), 2x BNC
User Controls Video Format
Pedestal
H/V Blanking
Test Pattern (Requires valid SDI Input)
Power 5VDC Regulated, 2 Watts, Power Supply Required (sold separately)
Size 5.1" x 1.8" x 1" (131 x 44 x 25mm)
Warranty AJA warranty
