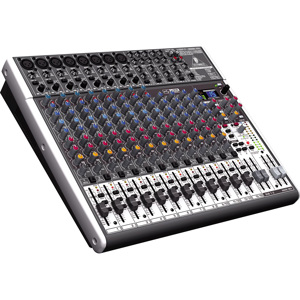

The XENYX X2222USB from Behringer is a 22-channel audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals and route the audio to several outputs. Special attention has been paid to the quality of the X2222USB's 8 microphone preamps, "British" style EQ and 8 easy-to-use one knob compressors.
The X2222USB provides eight mono channels with inserts and compressors, as well as four stereo channels, making it ideal for a wide range of audio tasks. There are three aux sends on every channel (which enable you to route individual channels to stage monitors or external effects) and three stereo returns. Every channel features a 3-band EQ with a swept mid, which can really help you make vocals and instruments stand out in a mix. The built-in USB interface allows for a bi-directional transfer of audio to and from your computer. The energyXT2.5 software is compatible with Mac, Windows and even Linux operating systems and includes virtual keyboard instruments and drum machines.
The built-in 24-bit dual engine effects processor features 16 presets that include, reverb, chorus, flanger, delay, pitch shifter and multi-effects. You can edit the parameters of every preset and a tap tempo button is included to sync time-based effects. The 8 built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob you can dial in the amount of compression you need for any given sound. Individual compressors are a feature rarely seen in mixing boards in this price range. The 8 XENYX preamps offer 130dB of dynamic range and the 3-band "British" style EQ's really allow you to create a fine-tuned mix. The XENYX X2222USB is well suited for recording studios, video editing suites, live sound mixing, podcasting and more.
|Total No. Of Inputs||22 Inputs|
|Mic/Line Inputs||8 x XLR Microphone Inputs
12 x 1/4" TRS Line-Level Inputs
|Stereo Line Inputs||4 x 1/4" TRS Left & Right Paired Inputs|
|AUX Returns||3 Stereo Returns|
|BUS (Group) Outputs||2 Sub Groups|
|2 Trk Master I/O||2 x Balanced XLR Outputs
2 x 1/4" TRS Outputs
|ALT I/O||2 x 1/4" TRS Sub Outputs
Stereo RCA 2-Track Outputs
|Monitor Outputs||2 x 1/4" TRS Control Room Outputs
1 x 1/4" Stereo Headphone Output
|EQ Section||3-Band EQ with Mid Sweep on Every Channel|
|Solo/Mute||Mute and Solo Buttons on Every Channel|
|Channel Level Control||60mm Faders|
|Phantom Power||+48V Phantom|
|Metering||12-Segment Stereo LED Meters
Clip LEDs on Every Channel
|Dimensions (H x W x D)||3.54 x 16.93 x 14"
90 x 430 x 355 mm
|Weight||10.5 lbs / 4.78 kg|
