Shure MX393/S - Super-Cardioid Boundary Condenser Microphone

SKU: US 580636
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

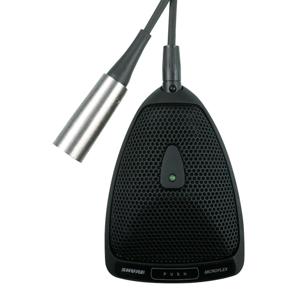

Shure MX393/S: Picture 1 regular
image does not represent actual item

About the Shure MX393/S

The Shure MX393/S is a supercardioid condenser boundary microphone with a built-in preamp, a removable 12 ft (4 m) that terminates to a balanced XLR-3M type connector cable. Logic Functions and programmable switch with LED indicator are also standard. This microphone operates on phantom power only.

Shure MX393/S Features

  • Flat frequency response across the vocal range for uncolored sound
  • Sleek, low-profile design for unobtrusive appearance
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Programmable membrane on/off switch plus LED on/off indicator

Shure MX393/S Specifications

Transducer Condenser
Frequency Response 50 to 17,000 Hz
Polar Pattern Supercardioid
Output Impedance EIA Rated at 150 ohms (180 ohms actual)
Sensitivity -26.5 dBV/Pa (47.3 mV) (at 1 kHz, open circuit voltage)
Maximum Sound Pressure Level 116.0 dB(1 kHz at 1% Total Harmonic Distortion, 1 k ohm load)
Signal to Noise Ratio 72.0 dB (referenced at 94 dB SPL)
Equivalent Output Noise (A-weighted) 22.0 dB SPL
Dynamic Range 94.0 dB
Common Mode Rejection 45 dB minimum, 10 Hz to 100 kHz
Switch Attenuation 50 dB minimum
Preamplifier Output Clipping Level -6 dBV (0.5 V)
Polarity Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector
Power Requirements 11 to 52 Vdc phantom
2.0 mA current consumption
Environmental Requirements Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
Relative Humidity: 0 to 95%
Dimensions (L x W x H) 4.263 x 3 x 1.621" (108.3 x 76.3 x 41.2 mm)
Weight 4.16 oz. (117.9 g)
