Azden 500udr Lavalier Microphone System w/ex-503h Omni-directional lavalier microphone system

SKU: US 586626
500UDR with 41BT and EX-503H Omni-directional lavalier microphone system
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$252.50

Add to Wishlist In Stock

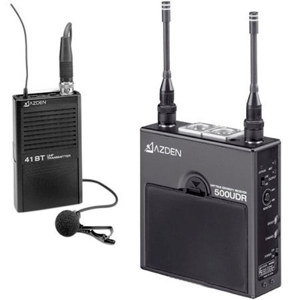

Azden 500udr Lavalier Microphone System w/ex-50...: Picture 1 regular
image does not represent actual item

About this item

63 user-selectable frequencies and true diversity front end with twin removable antennas in a new, lightweight all-metal chassis that measures only 4.1" square and 1.37" thick. Using 6 "AA" batteries, the 500UDR can operate for more than 8 1/2 hours. For even longer duty, the 500 UDR can be powered by an external power source through its DC-IN jack. Compatible with the 41BT bodypack, 41HT handheld mic and 41XT plug-in mic transmitter, the new 500UDR easily attaches to the video camera with supplied Velcro. In-use monitoring is achieved through the provided ear phone jack which has a seperate volume control.

41BT BODYPACK TRANSMITTER Transmitter with 63 user-changeable channels, input level control, standby switch, locking input connector, and metal belt clip. Use with lavalier microphones, headset microphones, or as an instrument transmitter for electric guitars or basses.

Technical Specs

Frequency Range UHF 63 ch. (793-806MHz)
Frequency Response 20HZ to 20KHz
Audio Distortion less than 1.0% @± 15K deviation
Dynamic Range better than 100dB
S/N Ratio better than 95dB
Operating Temperatures 0° C to 45° C
Operating Range 100m under ideal conditions
Oscillator PLL synthesized
Tone Squelch Frequency 32.768KHz
Type of Emission FM
Antenna External Antenna
Pre-emphasis 50 Micro Sec.
MAX I1nput Level 0dBm - 10dBm
Microphone Unit Lav or Headset
RF Output Power 15mW (50mW MAX)
Input Impedance 2.2(Mic.), 680(MP-1)
Audio Adj. Range m/2
Battery 9V
RF Carrier Frequency Range 793.750 - 805.875 MHz MicroComputer Controlled PLL Synth.
Effective Operating Range 200 - 300ft, 60 - 100m
Frequency Response 50Hz - 15kHz (± 3dB)
RF Sensitivity (12dB SINAD) 1.5µV
Adjacent Channel Selectivity >70dB (± 250kHz)
Image Rejection >90dB
IF Rejection >90dB
Audio THD <0.8%
Audio Output -18dBm (600O, ±5kHz Dev., MIC)
XLR Output Impedance 900 O Balanced
Phone Output Impedance 30 O
Power Requirements 6 x 1.5VDC ("AA" Batteries), 9 - 12VDC @ 170mA
Dimensions 4.13 (H) x 4.13(W) x 1.38 (D) inches 105(H) x 105 (W) . 35(D) mm
Weight 17.64 oz - 500g w/batteries
Operating Temperature 32° - 113°F, 0° - 45°C
