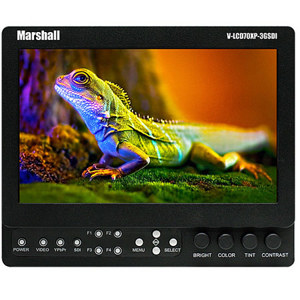

The V-LCD70XP-3GSDI is the latest update to Marshall's successful and popular line of portable field / camera-top monitors. New features include cast metal front panel, adjustable backlight and markers, manual gamma adjustment, Image Flip, 1/4"-20 mounting on all sides and a more robust power switch.
This portable monitor is the perfect solution for video professionals seeking to capture their best shots. The product is designed, engineered and assembled in the USA.
This 7" monitor offers standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control, 4-pin XLR power jack and optical grade polycarbonate screen protection. Two other major features include Marshall's industry leading FALSE COLOR and PEAKING Filters. This unit also offers the ability to adapt up to nine different battery configurations for providing mobile operation in the field. This option provides flexibility when using different cameras or configurations. The large selection of battery adapters can be interchanged (or "swapped" out) by the end-user.
|Screen Size (Display Area)||7.0-inch Diagonal (152.4mm x 91.44mm)|
|Resolution (Pixels)||800 x 480|
|Viewing Angle||L/R: 140°
|Pixel Pitch (mm)||0.1905mm(H) x 0.1905mm(V)|
|Inputs||Composite x 1, Component x 1, 3G/HD/SDI x 1|
|Loop-through outputs||Composite x 1, Component x 1, 3G/HD/SDI x 1|
|Battery Adapter||CM - (Canon)|
|Power Consumption||1 Amp (Max) @ 12VDC (12W Max)|
|Dimensions||7.03"W x 5.67"H x 2.17"D|
|Approx. Weight||1.9 lbs.|
