NTG-2 Dual Powered Directional Condenser ...

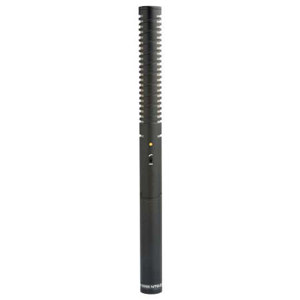

The new RODE NTG-2 is a lightweight condenser shotgun microphone, designed for professional applications within the film, video, television and production industries.
The NTG-2 provides a balanced low impedance output stage and operates either from an internal 1.5 V battery (AA) or 48 V to the P48 standard. A wide bandwidth and controlled polar response coupled with low noise SMT electronics, makes the NTG-2 the perfect choice for film, video engineering and voice-over work.
The NTG-2 is extremely lightweight making it ideal for mounting directly to video cameras or on boom poles.
|Acoustic Principle||Line gradient|
|Directional Pattern||Super Cardioid|
|Frequency response:||20Hz-20kHz, selectable HPF @ 80Hz/12dB/octave|
|Sensitivity:||-36 dB re 1 Volt/Pascal (15 mV @ 94 dB SPL) +/- 2 dB @ 1kHz|
|Signal-to-Noise Ratio||76 dB SPL (A - weighted per IEC651)|
|Phantom Power Requirements||P48 (48V) phantom supply or 1.5V AA battery|
|Max.SPL:||131dB SPL (@ 1kHz, 1% THD into 1KO load)|
|Output impedance (@ 1 kHz):||250O (phantom), 350O (battery)|
|Equivalent noise||18 dB SPL (A - weighted per IEC651)|
|Dimensions||278mmH x 22mmW x 22mmD|
|Maximum output voltage||-15.4dBu (@ 1kHz, 1% THD into 1KO load)|
