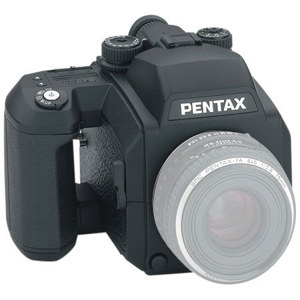

Developed as the third generation of the renowned "Super Field Camera" series, the 645NII incorporates all the outstanding features of its predecessor, the PENTAX 645N, while incorporating several features designed to further improve performance, maneuverability and user convenience. With all these exciting features, the 645NII is expected to be a favorite of uncompromising professionals and advanced amateurs, both out in the field and in the studio.
The 645NII incorporates the PENTAX-developed SAFOX IV phase-matching autofocus system to ensure accurate focusing not only on subjects with vertical orientation but also on those with horizontal orientation - even under such poor lighting conditions as EV-1.
The 645NII incorporates a "Dual Six-Segment" multi-pattern metering system. Two sensors positioned at both sides of the viewfinder measure the subject's lighting condition in two different areas: the wide sensor covers the entire image field, while the narrow sensor monitors the light reaching the central area of the image field. As a result, the 645NII can measure the subject's lighting condition with exceptional accuracy and efficiency. In addition to the Dual Six-Segment metering, the 645NII also offers the pinpoint "Spot Metering" and conventional "Center-Weighted Metering" modes.
The 645NII's four distinctive exposure modes allow the user to react effortlessly and efficiently to every situation and create the desired visual effect with ease: "Programmed AE" for adjustment-free shooting; "Aperture-Priority AE" to emphasize the depth of field; "Shutter-Priority AE" for sports and action photography; and "Metered Manual" for maximum control over exposure settings.
A built-in motor drive advances the film at the speed of 2.0 frames per second. Thanks to the high-precision pulse-count film transport mechanism, the spacing between frames is identical and the number of frames which can be taken from one roll of film has been increased from the 645 (16 frames from 120 film and 33 frames from 220 film). This motor drive also offers two film advance modes: "Single Advance" to advance one frame for each shutter release and "Consecutive Advance" to successively advance the film as long as the shutter release button is depressed. In addition, the motor drive automatically loads the film and advances it to the first frame, and winds the film into the film holder to avoid accidental exposure during film changes.
|Camera Type||Medium Format SLR (Single Lens Reflex) Camera|
|Lens Mount||Pentax 645 AF mount (interchangeable with Pentax 645 A mount). Applicable lenses: (1) SMC Pentax 645-FA lenses; (2) SMC Pentax 645-A lenses (usable in manual-focus mode only).|
|Viewfinder||Keplerian telescope viewfinder with interchangeable Natural-Bright-Matte focusing screen (AF Center Spot Matte screen as standard). Field of view: 92% vertical, 93% horizontal. Magnification: 0.76X (with 75mm lens at infinity with -1 diopter).|
|LCD||Viewfinder LCD (1) Focus indicator; (2) Shutter speed; (3) Aperture; (4) Flash status; (5) Bar graph; (6) AE lock; (7) Exposure compensation factor; (8) Out-of-exposure coupling range warning; (9) Over- and underexposure indication in Metered Manual.
External LCD (1) ISO film speed; (2) Exposure count; (3) Film transport status; (4) Battery level; (5) Photographic data imprinting.
|Focus Modes||AF Single
|Focus Type||TTL phase-matching autofocus system with focus lock and predictive autofocus. Effective illumination range: EV-1 EV18 (at ISO100). AF frame: (1) 3-point AF; (2) Spot AF. PCV beep sound for in-focus indication (cancellation possible).|
|Exposure Compensation||±3.3EV (1/3EV steps) or ±3.5EV (1/2EV steps).|
|Exposure Metering||TTL open-aperture multi-pattern metering. Metering mode: (1) Dual six-segment metering; (2) Center-weighted metering; (3) Spot metering. Metering range: EV2 EV21 (at ISO100 with 75mm F2.8 lens). Exposure mode: (1) Programmed AE; (2) Shutter-Priority AE; (3) Aperture-Priority AE; (4) Metered Manual; (5) Bulb. AE lock: Activated with AE lock button. Exposure value memorized for approx. 10 sec.|
|Exposure Bracketing||±1/3EV, ±2/3EV, ±1EV (1/3EV steps) or ±1/2EV, ±1EV, ±1.5EV (1/2EV steps) Depth-of-field preview provided.|
|Shutter /Release||Electronically controlled vertical-run cloth focal-plane shutter. Speed: (1) Auto: 1/1000 sec. 30 sec. stepless; (2) Manual: 1/1000 sec. 6 sec.; (3) X-sync: 1/60 sec.; (4) Bulb; (5) Leaf-shutter lens: 1/8 sec. Shutter locked with main switch off.
accepts optional CS-105 and CS-130 Cable Switches and the TS-110 Release Timer Switch (as used with the MZ-S), as well as a standard cable release.
|ISO Range||ISO6 ISO6400.|
|Flash sync||(1) Hotshoe (X-sync contact and dedicated flash contact); (2) X-sync socket. X-sync speed via hotshoe: 1/60-sec. automatically set at recharge completion of dedicated flash unit (X-sync speeds slower than 1/60 sec. can be used in Shutter-Priority AE and Metered Manual). TTL auto flash: Available with Pentax dedicated-flash units via hotshoe.|
|Film Transport||Automatic film advance with built-in motor. Loading: Automatic 1st frame positioning via shutter release button. Advance mode: (1) Single-frame advance; (2) Consecutive advance (approx. 2 frames/sec.) Automatic advance to film end after last frame. (Mid-roll advance to film end possible via mid-roll wind-up button).|
|Tripod Socket||1/4" x 20|
|Diopter Correction||-3.5 +1.0m-1 (diopters).|
|Self Timer||Electronically controlled self-timer with 12-second delay. Mid-operation cancellation possible.|
|Remote Control||accepts optional CS-105 and CS-130 Cable Switches and the TS-110 Release Timer Switch (as used with the MZ-S), as well as a standard cable release.|
|Depth Of Field Preview||Yes|
|Mirror Lock Up||Yes|
|Custom Functions||10 custom-programmable functions.|
|Power Source||6 AA-size batteries (alkaline or lithium batteries). Battery life: Approximately 130 rolls of 120 roll film; approximately 100 rolls of 220 roll film (under in-house test conditions using alkaline batteries).|
|Dimensions||5.9" (W) x 4.4" (H) x 4.6" (D) (150mm x 111mm x 117mm)|
|Weight||45.2 oz. (1,280g) without batteries|
