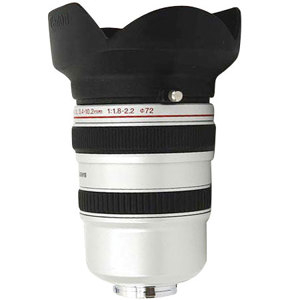

Canon 3x Wide Zoom Lens for Canon XL-2 and XL-1 Camcorders
What's Included With This Item:
This extra wide-angle 3X zoom lens provides 24-72mm 35mm equivalent focal length with high resolution exceeding 600 TV lines. It has an ND filter, manual focus and zoom ring. This extra-wide angle 3x zoom lens provides 24 to 72 mm in 35mm equivalent focal length with high resolution exceeding 600 TV lines. It has an ND filter, manual focus and zoom ring.
|Focal Length||3.4 - 10.2 mm|
|Lens Configuration||15 groups, 18 elements (no aspherical elements) * Protective glass is used as the final surface at the back of the lens.|
|Coating||Multi coating (14 elements, 22 surfaces).|
|F number||F1.8 - F2.2|
|Mount||Internal contact bayonet type electronic mount.
XL format system compatible 7 pins.
|Size|| 91.5 x 116 mm ( 3 5/8 x 4 5/8 in)|
|Filter diameter|| 72mm ( 2 7/8 in.)|
|Switches||Focus Mode selector switch, one push AF switch, ND filter mount/discount switch (ND 1.5)|
|Mount diameter|| 44mm ( 1 3/4 in.)|
|Power Supply||5.1V - 10V supplied by camera|
|Power Consumption||500 mA or less|
|Focusing system||TV AF method (rear focus drive), with manual focus ring|
|Zoom||Power Zoom (16 speed), with manual zoom ring.|
|Zoom Speed||Approx. 1.2sec. - approx. 45 sec.|
|Focus range||0.5 m (1 ft. 7 5/8 in.) to infinity (entire zoom range)|
|Angle of coverage||Wide: 70° 26' x 33 ° 48'
Tele: 26° 29' x 20° 1'
|Weight||Approx. 670g (1 lb. 7 1/2 oz.), without lens hood.|
