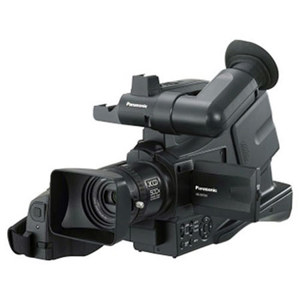

Panasonic AG-DVC20 1/6" 3CCD DV Proline Shoulder Mount Mini DV Camcorder

SKU: US 602202
**"No Tape" Error, "Wrong Tape Format" Error**
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock
Panasonic AG-DVC20 1/6" 3CCD DV Proline Sh...: Picture 1 regular
image does not represent actual item

About this item

High-Quality Recordings, the Easy High-Quality Recordings, the Easy High-QualityRecordings, the Easy Way Professional Style Camcorder

The AG-DVC20 DV camcorder delivers highly professional results with easy operation. The shoulder-held design keeps it stable when recording sports,weddings or other events. The 3CCD camera system, Advanced Color Pure Engine, & 10x optical zoom lens deliver professional-level, high-quality images. And the navigation menu makes operation one-touch easy. The AG-DVC20 has the competitive advantage of being a highly affordable shoulder mounted camera with no competition at its price level.

Shoulder-Held Design The AG-DVC20 features a convenient shoulder-held design, extra-large handle grip, fingertip zoom control, & LCD panel & viewfinder for easy framing & viewing. A shoulder mounted camera yields more stable images with minimal hand shaking, earns that "on the job respect" & the larger body size also acts as a deterrent against theft.

3CCD & Advanced Color Pure Engine A 3CCD optical system is an absolute prerequisite for a professional-level camera. The AG-DVC20 combines this with the digital processing Advanced Color Pure Engine to capture consistently sharp, vivid images.

10x Optical Zoom Lens & Digital Zoom The AG-DVC20 comes with a powerful 10x optical zoom lens & adds a digital zoom function that provides ultra-telephoto zooming all the way to 500x. Its large multi speed zoom rocker is conveniently positioned on the handle grip for easy, responsive zoom operation.

Easy Operation Menu One Touch Navigation: The cursor key & linked LCD icon display make it easy to set the recording mode & play back the results. This smart, easy operation switches the display to match the mode, for AUTO, MANUAL, or PLAY. Multilingual Menu: English, Chinese (simplified or traditional characters), Arabic, Persian, Spanish

Color Night View & Zero Lux Night View The Color Night View mode produces bright, vivid colors even in dimly lit locations. The LCD panel can also be used as a light source for shooting in total darkness with the Zero Lux Night View mode

Power LCD The AG-DVC20 features a bright 2.5-inch color LCD monitor. When shooting under strong sunlight, just press the Power LCD switch to increase the LCD brightness for a clearer, crisper view.

AUTO/MANUAL/FOCUS Switch Choose AUTO for super-easy recording, or MANUAL to adjust the focus manually with the focus ring & give yourself full control over the aperture & shutter speed. Switching from Auto Focus to Manual focus is easily accomplished by pushing down a spring loaded slide switch to the FOCUS position. Push again to switch back to Manual focus mode.

A Full Range of Easy-to-Use Functions 2 batteries supplied Trigger & zoom lever on top handle grip Built-in stereo microphone IEEE 1394 DV In/Out terminal Video & S-Video Out, Mic In & Audio Out,Digital EIS (Electronic Image Stabilizer)

Key Features

  • 1/6" 3CCD (460K pixels) Shoulder-Mount Camcorder
  • 2.5-inch monitor with Power LCD and new Zero Lux Night View features
  • 10X optical zoom and 500X digital zoom
  • Video and S-Video out; Mic In and Audio out
  • IEEE 1394 DV in/out terminal
  • Shoulder-mount design with extra-large handle grip and fingertip zoom control
  • Digital Electronic Image Stabilizer (EIS)
  • Easy, fast control with one-touch navigation "joystick"
  • Built-in stereo microphone
  • Energy efficient and lightweight (4.48 lbs)
  • Two 1350 mA batteries included

Technical Specs

Pick-up Devices: 1/6-inch 3CCD image sensor Total 460,000
Scanning System: 2:1 interlace scan, 525 lines, 60 fields
Lens: 10x (2.45 mm to 24.5 mm) zoom, F1.8 to F2.8, 43 mm filter diameter, Wide Range Macro (with Tele Macro)
Standard Illumination: 1,400 lux
Minimum Illumination: 1 lux (Color Night View Mode)
Recording Format: DV (Digital Video SD format)
Tape Uesd: 6.35 mm wide metal tape (mini DV)
Recording Time: 80 min (SP mode), 120 min (LP mode) with AY-DVM80 tape
Televison Format: 525 lines, 60 fields NTSC color signal
Video Recording Format: Digital Component Recording
Audio Recording Format: Audio Recording Format: PCM digital recording 16 bit / 48 kHz (2ch), 12 bit / 32 kHz (4ch)
DV In/Out: 4-pin, IEEE 1394 standard
Video Out: RCA x 1, 1.0Vp-p 75 oHms
S-Video Out: 4-pin x 1, Y: 1.0Vp-p 75 ohms, C: 0.286 Vp-p 75 ohms,
Mic In: Stereo mini jack, Sensitivity: 70dBv/ 50dB(0dB=1V/Pa,1kHz)
Audio Out: RCA x 2 (L/R), 316 mV, 600 ohms/10 k ohms.
Monitor: 2.5-inch LCD monitor
Viewfinder: Color electronic viewfinder
Microphone: Stereo (with zoom function)
Speaker: Diameter: 20 mm, dynamic round speaker
Power Source: 7.2 VDC with battery,
7.9 VDC with AC adaptor
Power Consumption: 3.2 W (when viewfinder is used)
3.4 W (when LCD monitor is used)
6.3 W (max.)
Operating Temperature: 32°F to 104 °F (0°C to 40°C)
Operating Humidity: 10 to 80% (no condensation)
Weight: 4.481 lb (2.0 kg)
Dimensions: 8-9/16" x 8-7/8" x 17-1/16" (216 x 225 x 432 mm)
