• This Flashpoint 7-inch compact, lightweight 7-inch field monitor is the perfect companion for your video-capable DSLR or HD camcorder-with advanced features and performance besting others in this category at significantly lower cost. Offering five times the image size of a typical 3-inch on-camera LCD, plus impressive (1024x600 pixel) native resolution, the Flashpoint enables extra-precise focusing and framing.
• That's augmented by two special features: Peaking-which highlights in-focus edge detail, and 1:1 Pixel Mapping-showing a magnified view at the camera's actual pixel resolution. The monitor offers a native 16:9 widescreen aspect ratio that's ideal for shooting in HD or Full HD-with instant switching between black-bordered and full-screen display-and can be set to bordered 4:3 when needed.
• With 250 cd/m2 brightness and an exceptional 800:1 contrast ratio, the LED-backlit display delivers rich, highly accurate color. And, its wide viewing-angle (160 degrees horizontal and 150 degrees vertical) means everyone on your shoot can see the live image clearly from wherever they're standing.
This highly configurable monitor features nine LED-illuminated buttons-including four with assignable functions-enabling one-touch operation and intuitive onscreen menu navigation.

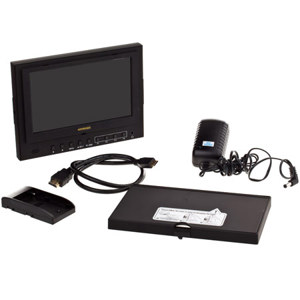

• It also has a headphone jack, a small mono speaker, a three-way power switch, and three 1/4-inch accessory/tripod bushings. The Flashpoint monitor kit comes with: a foldable, clip-on sun-hood which doubles as a screen protector; a mini ball-head shoe-mount bracket for flexible camera-top positioning; a snap-on battery plate (battery optional); an AC power adapter; and an HDMI camera cable.
|PANEL: Type||TFT LCD|
|Size||7.0-inch Diagonal (6 x 3.5 in)|
|Pixel Pitch (mm)||0.135mm (H) x 0.135mm (V)|
|Viewing Angle||160°/ 150°(H/V) (L/R: 160 deg. - U/D: 150 deg.)|
|RESOLUTION: Maximum (Analog)||1920x1080 (maximum)|
|SIGNAL INPUT: Input Video Signal||Input Signal: HDMI x1, Loop-through output: HDMI x1|
|POWER: On/Working||10W @ 12VDC|
|WEIGHT: Net(Physical)||Weight: (Approx.) 1.06 lb (480g)|
|Voltage||Input Voltage: DC 6.5-24V|
|Power Supply||Sony NPF-750|
|DIMENSIONS: Physical (WxHxD)||Size (WHD): 7.74 x 5.71 x 1.22 inches/ 196.5×145×31mm
196.5×145×41mm (with sun shade closed)
196.5×145×151.3mm (with sunshade open)
|Key Button Functions||Up selection key: to select items on OSD menu. Press to switch on/off 5D-II mode
Down selection key: to select items on OSD menu. Press to switch on/off Pixel-to-Pixel mode.
|Functions||5D-II/P (Advanced Functions)
5D-II/O/P (Advanced Functions)
F1-F4, 4 user-definable buttons, default function: F1: Peaking Filt er F2: False Colors F3: Exposure F4: Histogram
|More Functions||Peaking Filter, False Colors, Exposure, Histogram, 5D Camera, Center Marker, Pixel-to-Pixel, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 4x Zoom, Image Flip.|
