Sony
Used

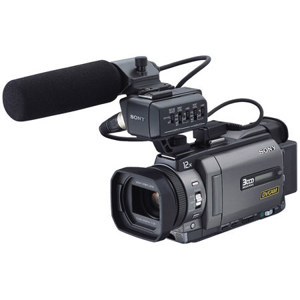

Sony DSR-PDX10 DVCAM 3 CCD Compact Digital Camcorder

SKU: US 616032
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$362.50 $15 per week
Add to Wishlist In Stock
Sony DSR-PDX10 DVCAM 3 CCD Compact Digital Camc...: Picture 1 regular
image does not represent actual item

About this item

An addition to the DVCAM camcorder family, the Sony DSR-PDX10 PAL with its 3-CCD Mega Pixel Camera System provides superb picture quality in both 4:3 and 16:9 aspect ratios. Within its compact body, this camcorder incorporates sophisticated features, including a USB port for streaming video and audio, and a Memory Stick media card 2 function that adds convenience to MPEG movie and still-picture recording. With a wide range of features, the DSR-PDX10 offers grand opportunities in a variety of professional applications.

The DSR-PDX10 provides high quality acquisition in the DVCAM component digital format, allowing up to forty minutes recording on one tape Mini DVCAM tape or 60 minutes in the DV mode.

This highly compact camcorder features three developed 1/4.7 inch million pixel CCD's that allow two scanning modes: 480 progressive (for still) or interlaced (for video). These new Megapixel CCD's also provide high quality acquisition with increased resolution and sensitivity at reduced vertical smear, and full resolution true 16:9 acquisition. Additionally, a USB port is provided for Web Streaming connection to a PC.

The DSR-PDX10 also features a 14 bit A/D and 14 bit Digital Signal Processor (DSP) that allows among others an amazing gray scale detail, and 1152X864 still image capturing. The DSR-PDX10 features a built in DVCAM to MPEG editing capability to the MemoryStick. Up to 85 minutes of MPEG movie, or 608 still pictures can be stored on one 128MB MemoryStick.

The built-in electronic zoom lens features Autofocus and SuperSteadyShot with a 12X optical, 48X digital zoom with minimal image degradation, with manual override.

A high resolution 246,000 dots TFT color LCD touch panel (for menu operation) is provided. The DSR-PDX10 also features a high resolution B and W viewfinder to make accurate focus shooting a breeze.

Key Features

  • 530 lines of horizontal resolution
  • 12x Optical zoom/ 48x Precision digital zoom
  • Manual Adjustment:Exposure, Shutter Speed, White Balance
  • Program AE:Soft Portrait, Sports Lesson, Beach & Ski, Sunset & Moon, Landscape
  • Spot Light/Back Light
  • Fader
  • Zebra Patterns (100% or 70%)
  • Guide Frame
  • Index Marking
  • 530 lines of horizontal resolution
  • Digital Effect (5 modes)
  • Auto Drum Function
  • Developed Mega Pixel 1/4.7-inch Type 3-CCD Camera System
  • 14-bit DXP (Digital Extended Processor)
  • Advanced HAD CCD Technology
  • Optical Super SteadyShot Function
  • Switchable 4:3 and 16:9 Recording Modes
  • Precision 16:9 Technology and Wider Angle of View in 16:9 Mode
  • i.LINK (DV) interface
  • 12x Optical zoom/ 48x Precision digital zoom
  • USB (Mini-B)
  • Headphone (Stereo-mini)
  • Remote (LANC)
  • Digital Program Editing allows auto assembly-like editing without an edit controller.
  • Memory Mix: Images stored on a
  • Memory Stick media card can be combined with the camera images and recorded to the camcorder tape.
  • TC/User Bit Preset Capability
  • Audio Dubbing (only for DVCAM recorded tape)
  • Color Bar (BARS)
  • Manual Adjustment:Exposure, Shutter Speed, White Balance
  • Program AE:Soft Portrait, Sports Lesson, Beach & Ski, Sunset & Moon, Landscape
  • Spot Light/Back Light
  • Fader
  • Zebra Patterns (100% or 70%)
  • Guide Frame
  • Index Marking
  • Date Stamping (on to camera recording picture)
  • Digital Effect (5 modes)
  • Auto Drum Function
  • Developed Mega Pixel 1/4.7-inch Type 3-CCD Camera System
  • 14-bit DXP (Digital Extended Processor)
  • Advanced HAD CCD Technology
  • Optical Super SteadyShot Function
  • Switchable 4:3 and 16:9 Recording Modes
  • Precision 16:9 Technology and Wider Angle of View in 16:9 Mode
  • i.LINK (DV) interface
  • Analog Audio, Video In/Out (AV-mini, S-Video)
  • USB (Mini-B)
  • Headphone (Stereo-mini)
  • Remote (LANC)
  • Digital Program Editing allows auto assembly-like editing without an edit controller.
  • Memory Mix: Images stored on a
  • Memory Stick media card can be combined with the camera images and recorded to the camcorder tape.
  • TC/User Bit Preset Capability
  • Audio Dubbing (only for DVCAM recorded tape)
  • Color Bar (BARS)
  • Hour Meter

Technical Specs

Audio/Video Rec 48 kHz/16-bit, 32 kHz/12-bit
Play 48 kHz/16-bit, 32 kHz/12-bit, 32 kHz/16-bit, 44.1 kHz/16-bit

530 lines of horizontal resolution
Television System EIA Standard, NTSC color system (DSR-PDX10)
Tape Format/Speed DV

40 minutes (DVCAM mode, with PDVM-40ME)
60 minutes (DV SP mode, with PDVM-40ME)

Approx. 28.2 mm/s (DVCAM mode) Approx. 18.8 mm/s (DV SP mode)
Image Sensor Three 1/4.7-inch type CCDs, 1,070,000 pixels (gross)
Optical Zoom 12x Optical zoom
Digital Zoom 48x Precision digital zoom
Lens 12:1 Variable speed zoom lens f 3.6 to 43.2 mm, F 1.6 to 2.8; Video (4:3): f 49 to 588 mm*/(16:9): f 41 to 492 mm*
Still: f 41 to 492 mm* *35 mm equivalent
Focusing System Auto/Manual (ring)/Infinity/One push auto
Shutter Speed 1/4 to 1/10,000 (S) (DSR-PDX10)
1/3 to 1/10,000 (S) (DSR-PDX10P)
Audio/Video Rec 48 kHz/16-bit, 32 kHz/12-bit
Play 48 kHz/16-bit, 32 kHz/12-bit, 32 kHz/16-bit, 44.1 kHz/16-bit

530 lines of horizontal resolution
Filter Size 37 mm
Viewfinder 180,000-dot black and white LCD, Zebra Pattern
LCD Screen TFT Active Matrix, 3.5-inch type, 246,400 dots (1120 x 220)
Special Effects Digital Effect (5 modes)
Fader Yes
Input terminals Audio (LINE)/Video IN/OUT AV-mini jack x1
S-Video IN/OUT Mini-DIN 4-pin jack x1
MIC IN Stereo mini jack x1
i.LINK IN/OUT 4-pin jack x1
XLR Audio Adaptor XLR 3-pin female x2 (LINE/MIC/MIC+ATT.)
Audio IN +48 V (ON/OFF)
Output terminals Audio (LINE)/Video IN/OUT AV-mini jack x1
S-Video IN/OUT Mini-DIN 4-pin jack x1
i.LINK IN/OUT 4-pin jack x1
LANC Stereo mini-mini jack x1
USB Mini-B x1
XLR Audio Adaptor XLR 3-pin female x2 (LINE/MIC/MIC+ATT.)
Microphone Stereo electret condenser microphone
MIC IN Stereo mini jack x1
Headphone Jack Stereo mini jack x1
Television System EIA Standard, NTSC color system (DSR-PDX10)
Power Requirements DC 7.2 V (Battery), DC 8.4 V (AC adaptor)

5.2 W (DSR-PDX10), 5.0 W (DSR-PDX10P) with view finder
6.5 W (DSR-PDX10), 6.3 W (DSR-PDX10P) with LCD
Dimensions WHD 3 3 /4 x 4 x 8 inches (93 x 99 x 202 mm) (camcorder only)
Weight 2 lb 1 oz (950 g) (camcorder only)
Special Features White Balance Auto/One-push/Out door (5800 K)/Indoor (3200 K)
Tape Format/Speed DV

40 minutes (DVCAM mode, with PDVM-40ME)
60 minutes (DV SP mode, with PDVM-40ME)

Approx. 28.2 mm/s (DVCAM mode) Approx. 18.8 mm/s (DV SP mode)
Image Sensor Three 1/4.7-inch type CCDs, 1,070,000 pixels (gross)
Optical Zoom 12x Optical zoom
Digital Zoom 48x Precision digital zoom
Lens 12:1 Variable speed zoom lens f 3.6 to 43.2 mm, F 1.6 to 2.8; Video (4:3): f 49 to 588 mm*/(16:9): f 41 to 492 mm*
Still: f 41 to 492 mm* *35 mm equivalent
Focusing System Auto/Manual (ring)/Infinity/One push auto
Shutter Speed 1/4 to 1/10,000 (S) (DSR-PDX10)
1/3 to 1/10,000 (S) (DSR-PDX10P)
Illumination 7 lux min.
Filter Size 37 mm
Viewfinder 180,000-dot black and white LCD, Zebra Pattern
LCD Screen TFT Active Matrix, 3.5-inch type, 246,400 dots (1120 x 220)
Special Effects Digital Effect (5 modes)
Fader Yes
Input terminals Audio (LINE)/Video IN/OUT AV-mini jack x1
S-Video IN/OUT Mini-DIN 4-pin jack x1
MIC IN Stereo mini jack x1
i.LINK IN/OUT 4-pin jack x1
XLR Audio Adaptor XLR 3-pin female x2 (LINE/MIC/MIC+ATT.)
Audio IN +48 V (ON/OFF)
Output terminals Audio (LINE)/Video IN/OUT AV-mini jack x1
S-Video IN/OUT Mini-DIN 4-pin jack x1
i.LINK IN/OUT 4-pin jack x1
LANC Stereo mini-mini jack x1
USB Mini-B x1
XLR Audio Adaptor XLR 3-pin female x2 (LINE/MIC/MIC+ATT.)
Microphone Stereo electret condenser microphone
MIC IN Stereo mini jack x1
Headphone Jack Stereo mini jack x1
Built-In Light Spot Light/Back Light
Power Requirements DC 7.2 V (Battery), DC 8.4 V (AC adaptor)

5.2 W (DSR-PDX10), 5.0 W (DSR-PDX10P) with view finder
6.5 W (DSR-PDX10), 6.3 W (DSR-PDX10P) with LCD
Dimensions WHD 3 3 /4 x 4 x 8 inches (93 x 99 x 202 mm) (camcorder only)
Weight 2 lb 1 oz (950 g) (camcorder only)
Special Features White Balance Auto/One-push/Out door (5800 K)/Indoor (3200 K)
