Bogen 519 Pro Video Fluid Head 75mmbowl

SKU: US 617424
In Original Packaging
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

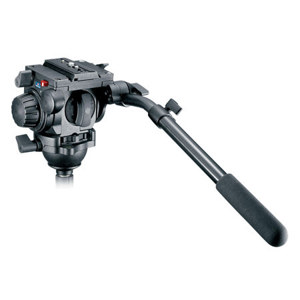

Manfrotto 519: Picture 1 regular
image does not represent actual item

About the Manfrotto 519

The first PRO FLUID VIDEO HEAD in the world with an interchangeable and adjustable counterbalance spring! WHY IS THIS IMPORTANT?

It's a fact that not all video cameras weigh the same; mini DV cameras may weigh only 2 lbs while professional grade DV cameras can weigh upwards of 22 lbs. This means professionals have as many equipment options as they do shooting styles, utilizing a wide range of different cameras including MINI DV, DVCAM, HD, ENG, and 16mm. Combinedwith numerous accessories, many of these setups can quickly overload video heads.

Understanding the problem that professional videographers face, Manfrotto has developed the 519, a compact yet heavy duty fluid video head capable of counterbalancing payloads anywhere between 3.3 lbs to 20 lbs, and supporting up to 22 lbs.

This is a revolutionary breakthrough from Manfrotto, as the 519 will be the only video head on the market encompassing both interchangeable and adjustable counterbalance springs.

Combining both features will allow videographers to easily interchange a vast array of cameras of various weights, as well as quickly fine tune the perfect balance point of whatever camera being used -- all with just one head!

In addition, fluid drag is easily controlled with a large continuous variable numbered knob in seven click-stop increments. Drag can be adjusted from the highest possible setting to nearly zero, allowing for the finest control through 360º pan, and +90º to -90º tilt.

BEST OF BOTH WORLDS... 505 + 510 = 519 The 510 had an internal, non-replaceable counterbalance spring that could be adjusted. The 505 had interchangeable counterbalance springs that could not be adjusted. The 519 has both features in one.

Manfrotto 519 Features

  • Tilt & Pan lock both located on the left side of the head ideal for ENG applications
  • Two springs are supplied with the head to cover the 3.3 lbs 20 lbs range counterbalance capability.
  • A small door at the front of the head makes switching the springs simple all you need is a coin.
  • Continuous variable pan drag adjustment with 7 + steps, located at the back of the head
  • Continuous variable tilt drag adjustment with 7 + steps, located on the left side of the head
  • Spirit level easier to read (and easier to replace in case it breaks)
  • Interchangeable Pan Bar rosette - avoids the need to replace part of the body casting if the teeth on the pan bar attachment wear out with extended use
  • Built-in 75 mm half bowl
  • 3433PL camera plate system supplied with 2 x 3/8" and 2 x 1/4" camera screws. 58mm sliding travel length
  • One telescopic pan bar is included as standard, but the 519 can accept a second one by simply removing the second attachment protection cap
  • Balance springs supplied with the 519:
  • Blue spring balances cameras between 3.3 and 11 lbs
  • Yellow spring balances cameras between 11 and 20 lbs @ ½ CG and 60° from tilt inclination
  • The spring housing is easily accessible, located at the front of the head.

Manfrotto 519 Specifications

Max load Capacity 22 lbs (10kg)
Head height 5.9" (15cm)
Quick Release Yes, Sliding Plate #3433PL
Pan 360°
Pan Drag: Cont. Variable 7 steps
Independ.Pan Lock: Yes
Tilt +91.5deg -90deg
Tilt Drag: Cont. Var. 7 steps
Independ.Tilt Lock: Yes
Female Thread size (Connect to Tripod) 75mm Head Bowl
Weight 6.39 lbs (2.9kg)
Notes Counter Balance System Variable Balance Control: 2 interchangeable springs from 3.3 to 20 lbs
Easy to replace Leveling Bubble
Interchangeable Pan Bar Rosette: 1
Pan Bars: 1
Temperature Range: -20oC / +60oC
Finish: Black
