Azden
Used

Azden MX-62 Professional Rack Mount Mixer with VU Meter

SKU: US 630401
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$415.00 $17 per week
Add to Wishlist In Stock

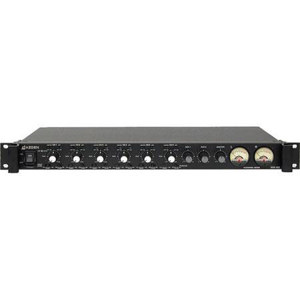

Azden MX-62: Picture 1 regular
image does not represent actual item

About the Azden MX-62

The Azden MX-62 6-Channel Rackmount Mixer features six balanced XLR switchable mic/line inputs. Each of these six inputs has gain level control, a peak LED indicator, a pan control knob, switchable 48-volt phantom power, a switchable high-pass filter and a switchable limiter. An additional two stereo RCA auxiliary inputs with independent level control knobs are included and effectively make the MX-62 an eight-channel mixer. There are an additional two XLR inputs for integrating input from an external processor. The output of the unit is controlled by the Master level knob, while stereo VU meters display your levels.

Azden MX-62 Specifications

Input Balanced Input:
XLR-3Pin (female) x 6 +4dBu / -3dBu / -55dBu (ch1-6)
XLR-3Pin (female) x 2 Direct Input +4dBu
Unbalanced Input: PCA (L/R) two way AUX IN
Output Balanced Output: XLR-3Pin (male) x 2 (L/R)
Reference Level: +4dBu (Loading 10kohm or more Balance out 600ohm)
Controls Per Channel:
1x Pan Knob
1x Input Gain Level Switch
1x Limiter Switch
1x 48 V Phantom Power Switch
1x High-Pass Filter Switch
Master Section:
1x External Inputs On/Off Switch
2x Auxiliary Level Knobs
1x Master Volume Knob
Metering 2x VU Meters
1x LED Peak Meter (Per Channel)
Power DC 12V / 2A (AC/DC Adaptor)
Dimensions (WxHxD) 435x44x270mm / 17.12x1.73x10.62"
Weight 2.25 kg / 4.96 lbs
