Azden 1200ABT UHF Body-Pack System with Anton Bauer Mount Receiver, Belt-Pack Transmitter & Azden EX-503H Lavaliere Microphone

SKU: US 630453
Azden 1200URX/AB Receiver, 1200BT Belt-pack Transmitter, Azden EX-503H Lavaliere Microphone, Original Box
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$525.00 $21 per week
Add to Wishlist In Stock

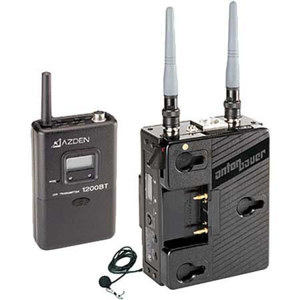

Azden 1200ABT UHF Body-Pack: Picture 1 regular
image does not represent actual item

About the Azden 1200ABT UHF Body-Pack

The redesigned Azden 1200 series ENG wireless mic system for broadcast professionals has been updated to operate in the 628-662 MHz band, making it compatible with the DTV changeover coming in early 2009. Offering 188 digitally selectable UHF frequencies (638.125 to 661.875 MHz), the new receivers and transmitters provide superior selectivity in conjunction with an excellent signal-to-noise ratio and extended battery life.

The digital displays also provides information concerning signal strength, diversity antenna function and battery condition. All models benefit from newly improved compander/expander circuitry.

Azden 1200ABT UHF Body-Pack Features

  • Compander circuit for more natural sound
  • True diversity system with 2 complete front-ends and high-gain antennas
  • High 5th-order filters for improved S/N ratio
  • Multi-function LCD shows channel, frequency, battery info, AF level and diversity operation
  • DTV-compatible (188) frequencies covering 4 UHF TV bands
  • Dielectric filters throughout, for improved image rejection and superior diversity isolation

Azden 1200ABT UHF Body-Pack Specifications

RF Carrier Frequency Range 188 steps ~ 638.125 - 661.875 MHz
Effective Operating Range 200 - 300 ft ~ 60 - 100m
Frequency Response 50 - 15kHz (± 1.5dB)
RF Sensitivity (12dB SINAD) 1.2µV
Adjacent Channel Selectivity > 70dB (± 250kHz)
Image Rejection > 93dB
IF Rejection > 93dB
Audio THD < 0.8%
Audio Output 40dBm ± 40kHz Deviation (-20dBm ± 40kHz Deviation for 1200URXSi)
Output Impedance 600O (300O for 1200URXSi)
Signal/Noise Ratio > 62dB (± 5kHz Deviation) "A" Weighted
Power Requirements 11 - 15V DC @ 220mA (10 - 17V DC @ 200mA for 1200URXSi)
Operating Temperature Range -500 - +1220 F ~ -100 - +500 C
Max Modulation Sensitivity -4dBm
MIC Level / Imped. -60dBm / 2.2kO (± 5kHz Deviation)
Power Requirements 3V DC (2 "AA" Alkaline) @ < 150mA
Dimensions 2.48 (W) x 3.86 (H) x 1.12 (D) inches
Weight 15.87ounces ~ 450g for 1200URX/AB
Weight 6.35 ounces ~ 180g(with Battery)
Warranty Azden warranty
