Azden
Used

Azden FMX-32 3-Channel Microphone Field Mixer

SKU: US 566130
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available.

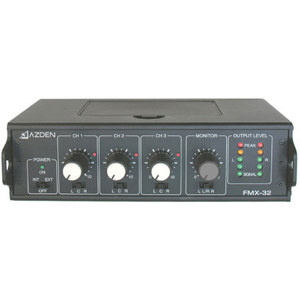

Azden FMX-32 3-Channel Microphone Field Mixer: Picture 1 regular
image does not represent actual item

About this item

• A portable 3-channel field mixer with phantom power, the FMX-32 is designed for use by the professional videographer. The small (1.96 x 6.69 x 4.33 inches), all metal, battery operated (6-AA) mixer can be attached directly to the camera with supplied hook-and-loop mounting tape.

The FMX-32 has the following features: enhanced circuitry for improved signal-to-noise ratio, 5-step LED array for easy signal monitoring, a 12V DC input for external power, switchable input limiter to reduce the possibility of overload distortion, channel-addressable outputs and a 1/4" monitor headphone jack with level control.

It also has: 3 balanced XLR mic inputs each with switchable phantom power, 2 channel addressable balanced XLR line-level outputs with level controls, a stereo mini-jack (3.5mm) output, and a POWER On/Off/Low Battery LED indicator.

Key Features

  • Professional field mixer w/3 XLR assignable inputs
  • 2 XLR outputs plus a mini-plug output
  • Adjustable input level
  • Headphone monitor w/volume control
  • LEDs for Peak Level, power and battery condition
  • Supplied w/hook-and-loop fastener

Technical Specs

Frequency Response Main and Unbalanced Output: 40-17,000Hz (-3dB)
Monitor Output: 50-17,000Hz (-3dB)
Noise Level Left & Right Channel: -114dBu (A weighted, Input Equivilent Level)
T.H.D. Less than 0.05% @ 1KHz (+10dBu output)
MIC Input Level Electronic Balanced: -50dBu
Balanced Output Level Electronic Balanced:
-0dBu (100K ohm load)
-6.5dBu (600 ohm load)
Unbalanced Output Level 3.5mm Stereo: -50dBu (100K ohm load)
Monitor Output 3.5mm Stereo: -4dBu (32 ohm load)
(Recommended load 16-100 ohms)
Maximum Output Level Balanced Output:
+14dBu (100K ohm load
+6.5dBu (600 ohm load)
Unbalanced Output
-36dBu (100K ohm load)
Battery Type/Duration 6-"AA" Alkaline - 15 hours
Current Drain 47mA nominal (Phantom Power Off)
100mA maximum (Phamtom Power On)
Phantom Power Voltage 48VDC (+/- 4VDC)
Size 50H x 170W x 110D mm (1.96 x 6.69 x 4.33 inches)
Weight w/o Battery 27.9 ounces (791 grams)
Weight 3.00 lbs
