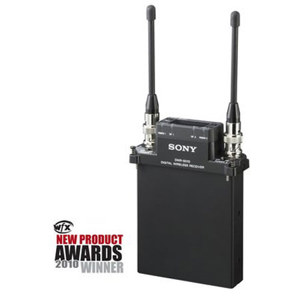

The Sony DWR-S01D/4244 is the first digital dual channel slot-in receiver! The /4244 model operates within a 24 MHz range, from 638 to 662 MHz. The slot-in receiver can be mounted directly into PDW-700 XDCAM HD 422 camcorders, providing 2ch wireless operation with unique wireless remote control of the digital wireless system from the viewfinder of the PDW-700 camera. The DWR-S01D can also be mounted on existing cameras (or operated in a mixer bag) using the DWA-01D adapter, providing either AES3 digital audio or analog audio output. To assist in wireless system set-up, the receiver includes both clear channel and active channel scan functions.
|Audio Output Connector||D-sub 15pin|
|Compatibility||For use with DWL Series digital wireless products operating within the same frequency block|
|Receiving Channels||UHF-TV Channels 42/44 (42,43,44 and 45), 638.125 MHz to 661.875 MHz|
|Power Requirements||Powered by compatible camera slot or DWA-01D adapter|
|Dimensions||3.50" x 5.50" x 1.25" / 8.89 x 13.97 x 3.17 cm|
|Weight||9 oz / 255.14 g|
